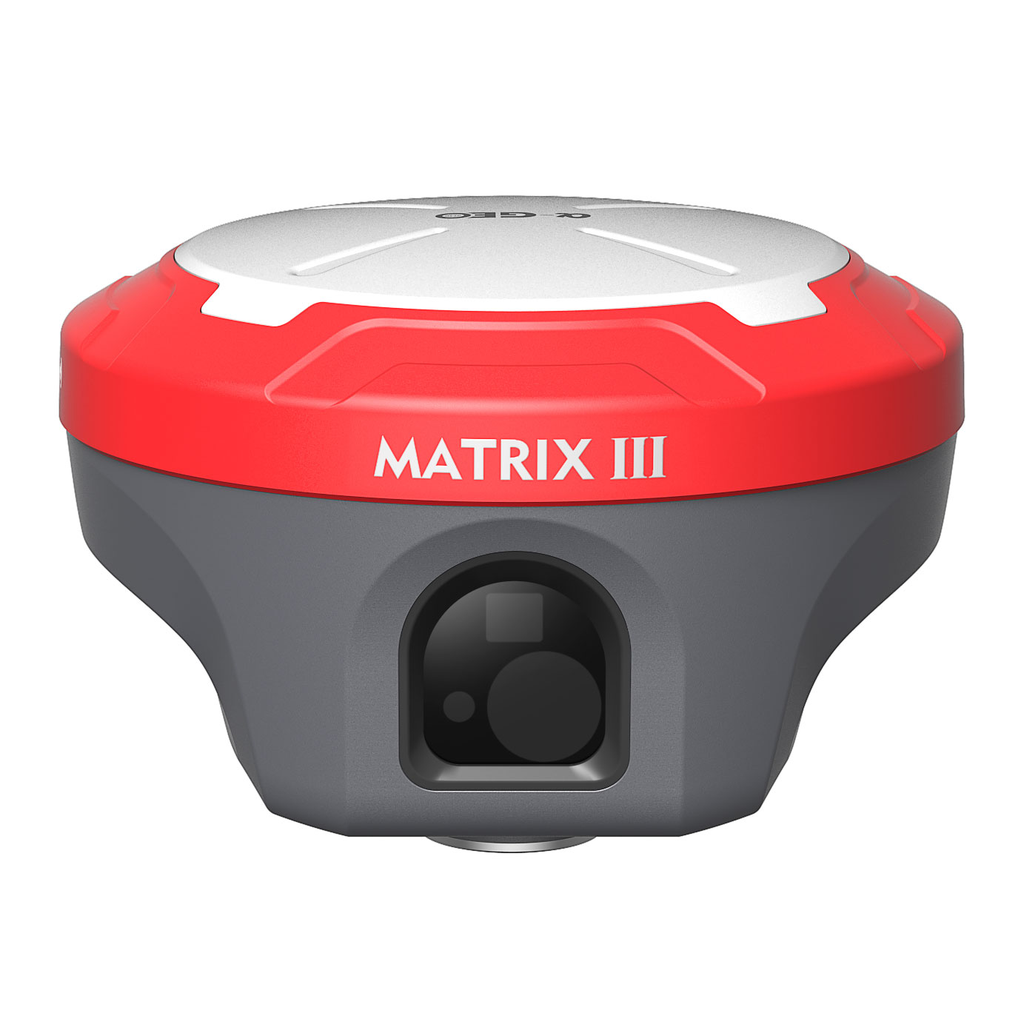

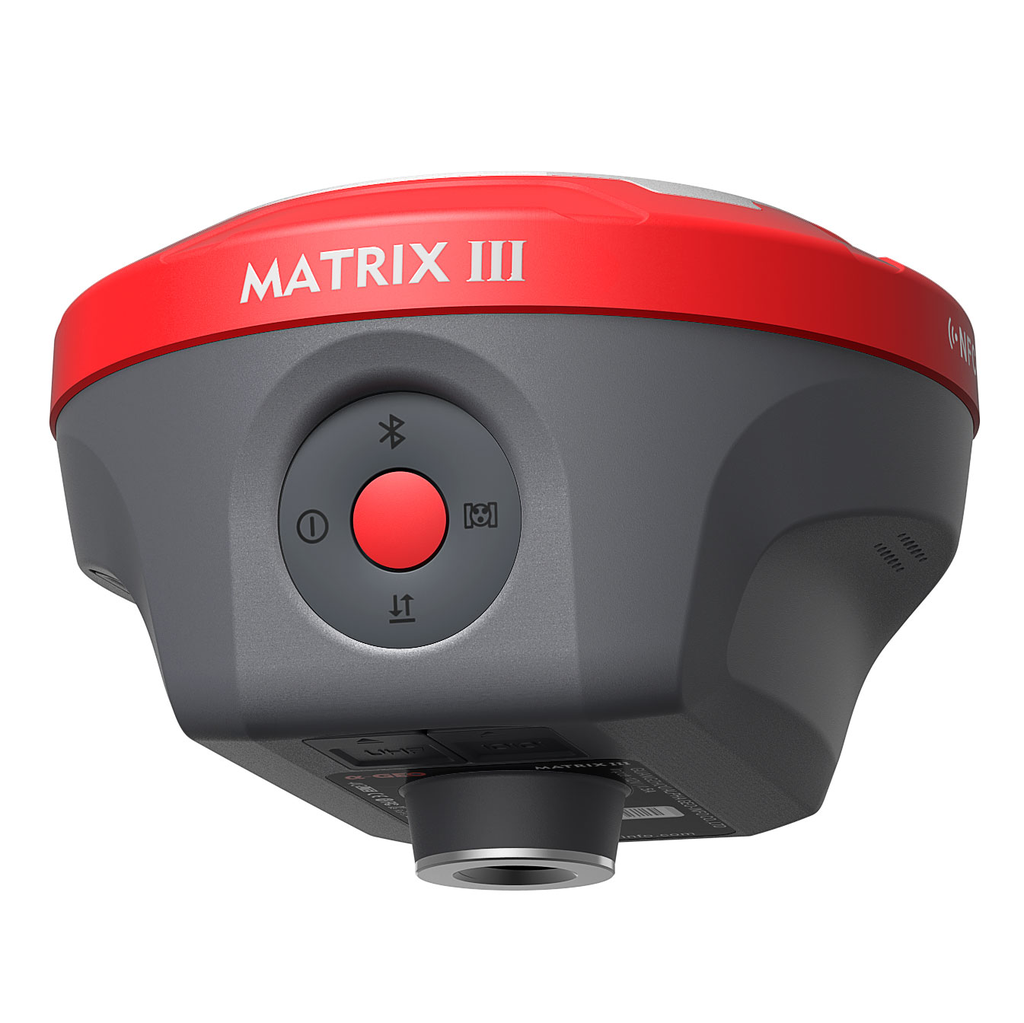

MATRIX III |
GNSS PERFORMANCE
Signals jälgimine | GPS:L1C/,L2C,L2P, L5 GLONASS:L1,L2 BDS:B1,B1C,B2,B2a,B2b,B3 GALILEO: E1,E5a, E5b, E6 QZSS:L1, L2, L5, L6 SBAS:WAAS,EGNOS, MSAS,GAGAN, SDCM |
Channels | 1408 |
Cold start | <60s |
Hot start | <15s |
POSITSIONEERIMINE väljund kiirus | 1Hz~50Hz |
Signal reacquisiton | <1s |
RTK initsialiseerimine aeg | <5s |
Initialization reliability | >99.99% |
aeg täpsus | 20ns |
POSITSIONEERIMISTÄPSUS
Code differential GNSS POSITSIONEERIMINE | H:0.25m +1ppm RMS |
SBAS differential positioning täpsus | Typically <5m 3DRMS |
Static GNSS mõõdistamine | H:2.5mm+0.5ppm RMS |
RTK mõõdistamine(baseline<30km) | H: 8mm + 1ppm RMS |
Network RTK³ | H: 8mm + 0.5ppm RMS |
Laser mõõtmine | +2mm+100x10-6xD (D on mõõtmiskaugus, ühik: mm) |
Laser kaugus | 0.05m~100m |
ANDUR
IMU | toetatud, 4DlMU initsialiseerimine sisse 3 sekundit |
Update kiirus | 400Hz |
täpsus | <2.5cm ulatuses 120° |
kalle compensation | 0~120° |
KAAMERA
laser assisted | 5MP HD kaamera |
AR kaamera | 5MP |
FOV | 84° |
FÜÜSILISED ANDMED
Materials | Magnesium alloy |
mõõtmed | 129mmx129mmx99mm |
Kaal | <0.8kg |
töötemperatuur | -40℃~+75°C |
Hoiustamine temperature | -55℃~+85°C |
Waterproof/Dustproof | IP67 standardne, protected alates 30min immersion kuni depth 1m |
Shock | Survive 2m varras drop on kuni concrete |
Vibration | MIL-STD-810G |
Humidity | 100% non-condensing |
ELEKTRILISED ANDMED
toide supply | 9~24V DCexternal powerinputto 5-pin LEMO portSupports tüüp-C fast laadimine |
Aku | Built-sisse 7000mAh-7.4V Li-ion aku |
Aku life | Rover režiim: 12hours |
COMMUNICATIONS
l/O liides | 1*5-pin LEMO port, toiteallikas, RS232, väline raadioside port |
Internal UHF | 1.5W vastuvõtja ja saatja |
sagedus band | 410MHz~470MHz,toetab frequency modification |
Protocols | Trimtalk450S,Alphatalk15, South,Satel,PCC-EOT |
Cellular network | täielik frequency multi-band 4G modem, toetab TDD-LTE/FDD-LTE/WCDMA/CDMA2000 |
WiFi | 802.11 b/g standard,access point & client režiim,supports accessing kuni hotspot jaoks correction edastus |
Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-režiim |
Differential andmed vorming | RTCM2x, RTCM3x,CMR&CMR+,sCMRX |
GPS väljund andmed vorming | RINEX,NMEA-0183 |
ANDMESALVESTUS
mälu | 64GB, supports cyclic salvestusruum koos ability kuni collect almost 4 aastat raw observation based või 5s intervall |
KASUTAJA SUHTLUS
Operating SÜSTEEM | Linux OS |
Buttons | toide key |
Indicators | 1*toide indicator |
Voice | nutikas voice prompts |
Web ul | toetab Web Ul configration |
