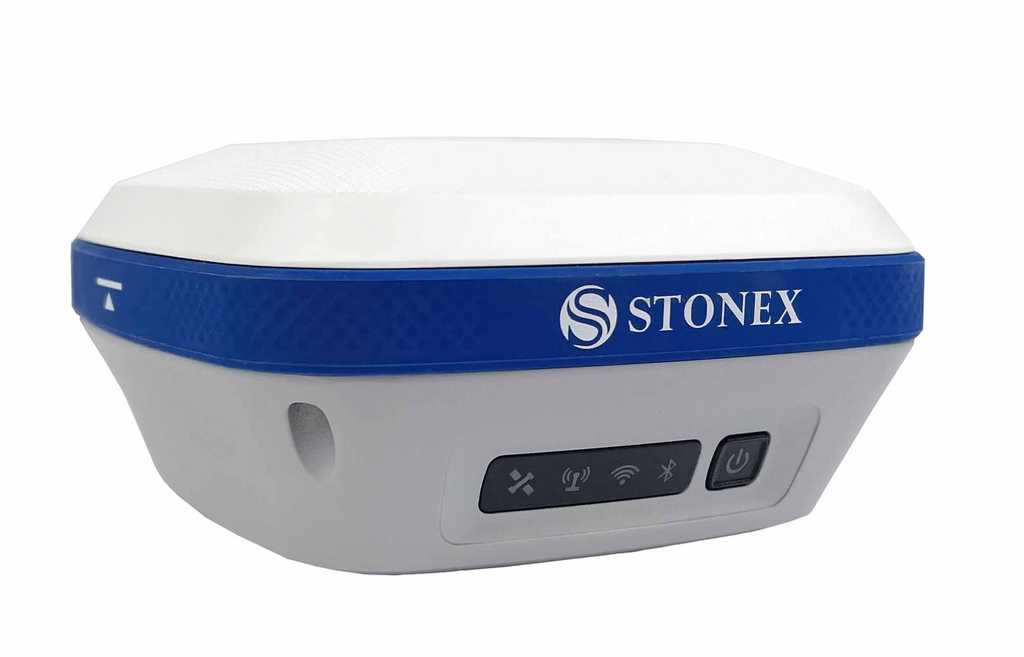

Equipped with an advanced 1408 channel GNSS board and capable of supporting various satellite constellations, including GPS, GLONASS, BEIDOU, GALILEO, QZSS. Stonex S850 is equipped with all the necessary connections, has built in Bluetooth and internal Wi Fi capabilities; has a built in UHF radio and 4G GSM modem compatible worldwide. Stonex S850 also integrates the IMU system that enables inclined measurement (TILT) up to 60 °°: quick initialization, fast and accurate surveying.
S850+ |
SPETSIFIKATSIOON
Satellite signals tracked | GPS: L1 C/, L1C, L2P, L2C, L5 |
PPP | B2b PPP1, ON1 |
Channels | 1408 |
Position kiirus | kuni 20Hz |
Signal reacquisition | <1 s |
RTK Signal Initialization | Typically < 10 s |
Hot Start | Typically < 15 s |
Initialization reliability | > 99.9 % |
OS | Linux |
Tilt andur | IMU ja E-bubble (valikuline) |
HIGH PRECISION STATIC MÕÕDISTAMINE
horisontaalne | 2.5 mm + 0.5 ppm RMS |
vertikaalne | 5.0 mm + 0.5 ppm RMS |
CODE DIFFERENTIAL POSITSIONEERIMINE
täpsus | 0.40 m RMS |
SBAS-POSITSIONEERIMINE
täpsus | 0.60 m RMS |
REAL AEG KINEMATIC (< 30 Km) – NETWORK RTK
fikseeritud RTK horisontaalne | 8 mm + 1 ppm RMS |
fikseeritud RTK vertikaalne | 15 mm + 1 ppm RMS |
INTEGRATED GNSS-ANTENN
High accuracy multi-constellation micro-strip antenn, zero phase center, with internal multipath suppressive board
INTERNAL MODEM
Band | Nano SIM kaart GSM: B2/B3/B5/B8 UMTS: B1/B2/B4/B5/B6/B8/B19 LTE TDD: B38/B39/B40/B41 B13/B18/B19/B20/B25/B26/B28 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/ |
TOIDE SUPPLY
Aku | 7.2 V - 6900 mAh Internal rechargeable |
pinge | 9 kuni 28 V DC väline toide sisend koos over-pinge protection (5-pin Lemo) |
töö aeg | kuni 10 tundi |
Charge aeg | Typically 4 tundi |
