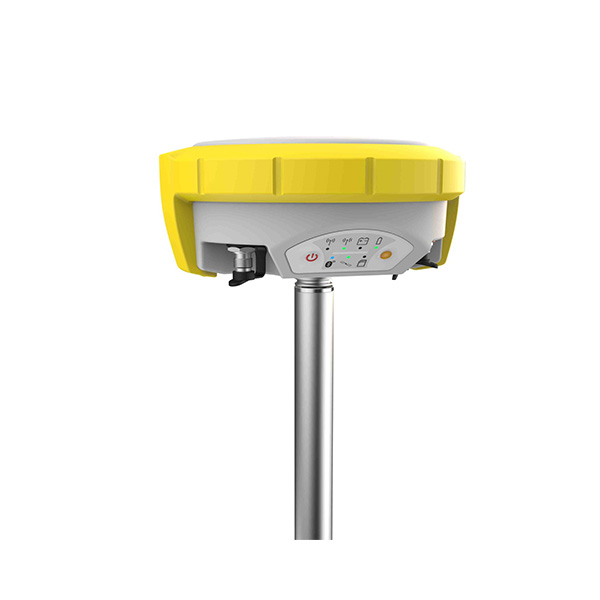

Zenith16 multi-constellation GNSS vastuvõtja |
SPETSIFIKATSIOON
mõõtmine Engine | NovAtel OEM719, 555 channels, multi-sagedus, multi-constellation |
GPS jälgimine | L1 C/, L2P, L2C, L5 |
GLONASS jälgimine | L1 C/, L2P, L2C, L3 |
BeiDou jälgimine | B1, B2, B3 |
Galileo jälgimine | E1, E5a, E5b, AltBOC, E6 |
SBAS | EGNOS, WAAS, MSAS, GAGAN |
QZSS jälgimine | L1, L2, L5, L6* |
NavIC | L5* |
Precise Point POSITSIONEERIMINE (PPP) | TerraStar C Pro, L-Band (opt) |
POSITSIONEERIMINE kiirus | 5 Hz, 20 Hz (opt) |
aeg jaoks Initialisation | Typically 4 s |
COMMUNICATION
RTK andmed protocols | CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM |
NMEA väljund | NMEA 0183 |
UHF radio moodul | Satel TR4+, transceiverTransmission toide 0.5 ja 1.0 W; sagedus ulatus 403 kuni 473 MHz (opt) |
Bluetooth® | seade class IIQR-iConnect functionality |
TNC ühendus | High sensitivity, UHF antenn |
sideport | USB, seeria & toide |
LIIDESED
klaviatuur | On/off button, Function button |
LED olek indicators | Position, RTK, toide, salvestusruum, Bluetooth® |
LED režiim indicators | Rover, Base, Static |
andmed recording | MicroSD kaart |
VASTUVÕTJA ACCURACY
RTK | Hz: 8 mm + 1 ppmV: 15 mm + 1 ppm |
Network RTK | Hz: 8 mm + 0.5 ppmV: 15 mm + 0.5 ppm |
Static | Hz: 3 mm + 0.5 ppmV: 5 mm + 0.5 ppm |
Static long | Hz: 3 mm + 0.1 ppmV: 3.5 mm + 0.4 ppm |
PPP (TerraStar C Pro) | Hz: < 2.5 cmV: < 5 cm |
TOIDE SUPPLY
Internal aku | Li-Ion 7.4 V / 2.6 Ah |
tööaeg | 7 h sisse static / 6 h sisse rover režiim |
väline toide | 10.5 V kuni 28 V DC koos ZDC225 kaabel |
PHYSICAL SPETSIFIKATSIOONID
mõõtmed | kõrgus 95 mm, ø 198 mm |
Kaal | 1.14 kuni 1.18 kg ilma akud *** |
Operating temp. | −40°C kuni 65°C |
Environmental protection | IP68 (IEC 60529)Withstands powerful water jets ja temporary immersion under waterMIL-STD-810H 512.6 Procedure IMIL-STD-810H 510.7 Procedure IFully dust tightMIL-STD-810G 1 510.6 |
Humidity | 100% condensing |
Vibration | Mechanical stress resistant according kuni ISO 9022-36-05 |
Shock | Withstands 2 m (6.6 ft) varras topple over onto kõva surface |
