Capable of operating at a speed of 15 rps (rotations per second), the Zone75 DG is a perfect fit for machine guidance solutions. With a laser beam that is stable over longer distances, it is especially suited for land levelling and agriculture applications. For optimal land use, Zone75 DG not only gives you a reference for horizontal planes but also for slopes up to 15%.

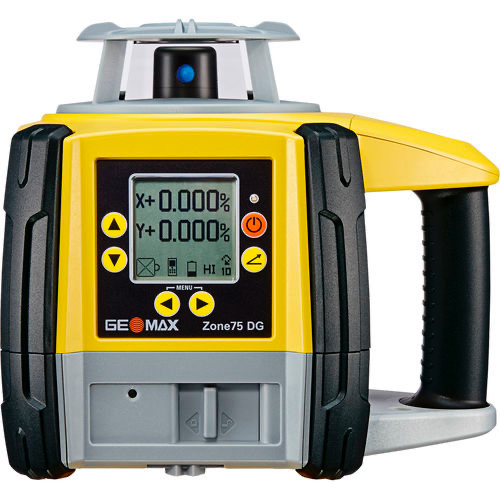

ZONE75DG |
SPETSIFIKATSIOON
Kirjeldus | Self-leveling horizontal, vertical, digitaalne slope sisse dual axes (fully automatic). Beam catching option. |
Operating ulatus | 1100 m / 3600 ft |
Self-levelling täpsus | ± 5° |
Self-levelling ulatus | kuni 15 % |
Grade ulatus | ± 1.5 mm juures 30 m (±1/16” juures 100 ft) |
Rotation kiirus | 300, 600, 900 rpm |
laser diode tüüp/class | 635 nm (visible) / class 1 |
Akud tüüp | Li-Ion |
Aku life | > 50h |
Operating temps. | -20°C kuni 50°C |
Hoiustamine temp. | -30°C kuni 70°C |
Protection | IP67 |
