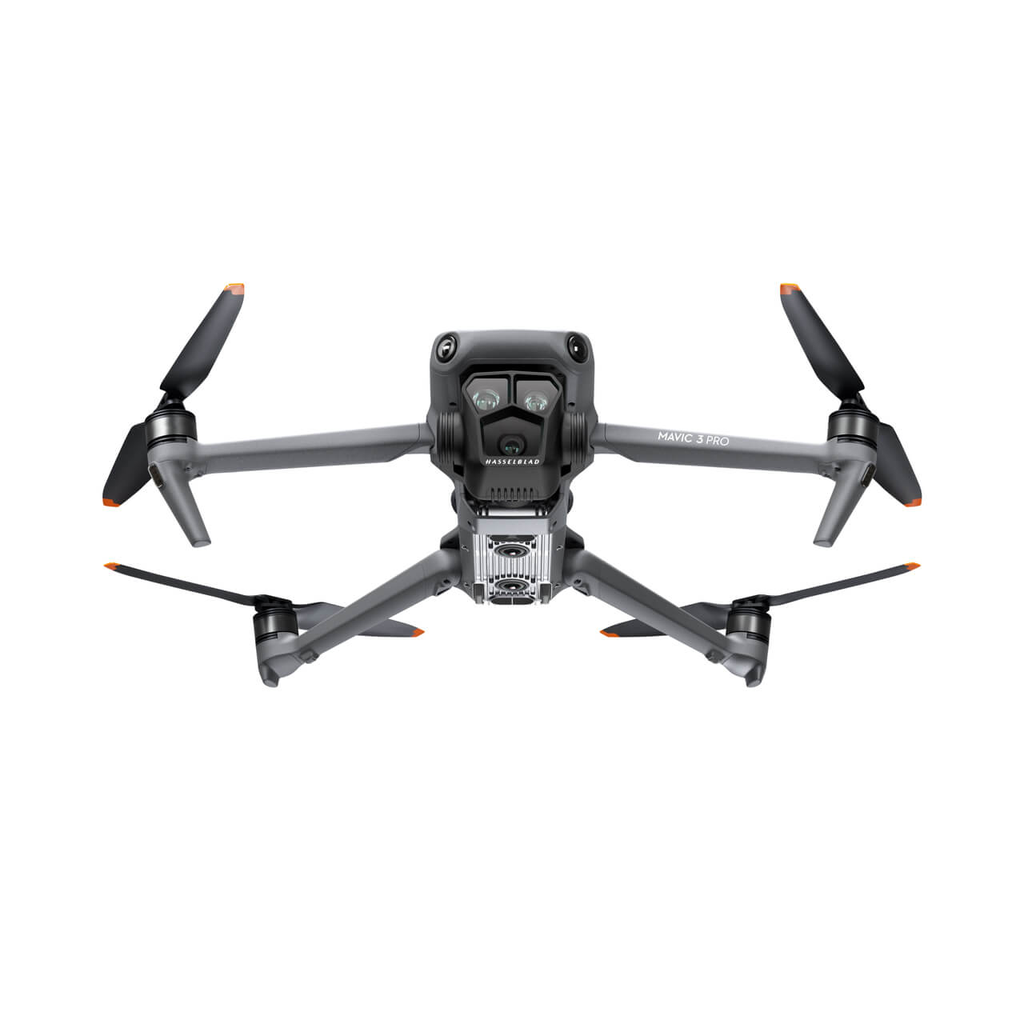

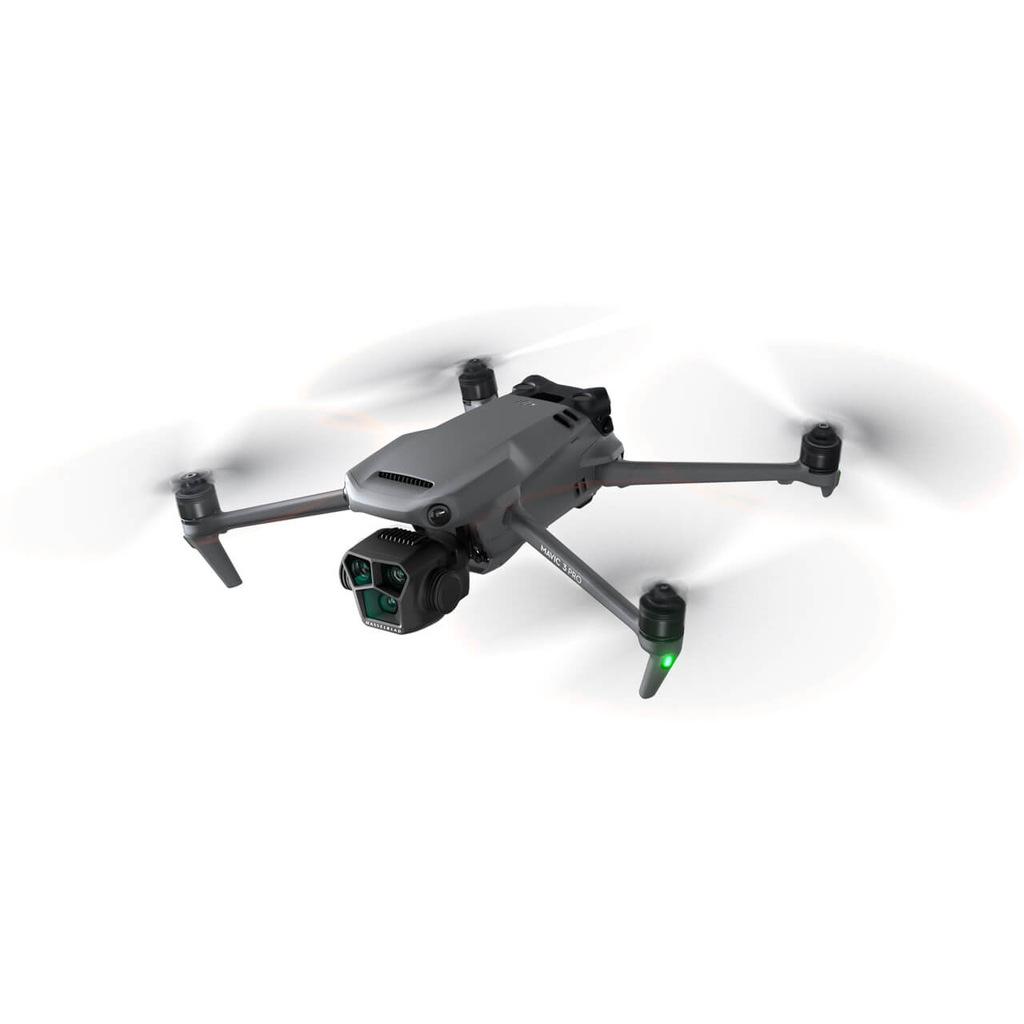

DJI Mavic 3 is a powerful flagship camera drone equipped with a 4/3 CMOS Hasselblad camera to facilitate professional-level imaging. It also offers omnidirectional obstacle sensing for a smooth flight experience, a max flight time of 46 minutes, and a max transmission range of 15 km. Every upgrade of DJI Mavic 3 sets a new standard for aerial photography. The DJI Mavic 3 Series features next-level imaging performance.
DJI MAVIC SERIES |
SPECIFICATION
Takeoff weight | 895 g |
Dimensions | Folded (without propellers): 221×96.3×90.3 mm (L×W×H) |
Max ascent speed | 8 m/s |
Max descent speed | 6 m/s |
Max horizontal speed (At sea level, no wind) | 21 m/s |
Max takeoff altitude | 6000 m |
Max flight time | 46 minutes |
Max hovering time | 40 minutes |
Max flight distance | 30 km |
Max wind speed resistance | 12 m/s |
Max tilt angle | 35° |
Operating temperature | -10° to 40° C (14° to 104° F) |
Global navigation satellite system | GPS + Galileo + BeiDou |
Internal storage | 8 GB (approx. 7.9GB available space) |
HOVERING ACCURACY RANGE
Vertical | ±0.1 m (with vision positioning) |
Horizontal | ±0.3 m (with vision positioning) |
CAMERA
Image sensor | 4/3 CMOS, Effective Pixels: 20 MP |
Lens | FOV: 84° |
ISO Range | Normal, Slow-motion: |
Shutter speed | Electronic Shutter: 8-1/8000 s |
Max image size | 5280×3956 |
Still photography modes | Single Shot: 20 MP |
Photo format | JPEG/DNG (RAW) |
Video resolution | H.264/H.265 |
Video format | MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
Max video bitrate | H.264/H.265: 200 Mbps |
Supported file system | exFAT |
Color mode and sampling method | Normal/HLG/D-Log/D-Log M |
Digital zoom (Only in normal video mode and explore mode) | 3× (only in Video Mode) |
GIMBAL
Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
Mechanical range | Tilt: -135° to 100° |
Controllable range | Tilt: -90° to 35° |
Max control speed (tilt) | 100°/s |
Angular vibration range | ±0.007° |
SENSING
Sensing type | Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft |
Forward | Measurement Range: 0.5-20 m |
Backward | Measurement Range: 0.5-16 m |
Lateral | Measurement Range: 0.5-25 m |
Upward | Measurement Range: 0.2-10 m |
Downward | Measurement Range: 0.3-18 m |
Operating environment | Forward, Backward, Left, Right, and Upward |
BATTERY
Capacity | 5000 mAh |
Weight | 335.5 g |
Nominal voltage | 15.4 V |
Max charging voltage | 17.6 V |
Type | Li-ion 4S |
Energy | 77 Wh |
Charging temperature | 5° to 40° C (41° to 104° F) |
Charging time | Approx. 96 minutes |
CHARGER
Input | 100-240 V (AC), 47-63 Hz, 2 A |
Output | USB-C: |
Rated power | 65 W |
BATTERY CHARGING HUB
Input | USB-C: 5-20 V, max 5 A |
Output | Battery Port: 12-17.6 V, max. 5 A |
Rated power | DJI Mavic 3 Battery Charging Hub: 65 W |
Charging type | Three batteries charged in sequence |
Compatibility | DJI Mavic 3 Intelligent Flight Battery |
