Controller functions:
Manual control - precise steering and throttle control. Return-to-Home - automatic return if connection lost or safety limit reached. Automatic/manual mode switching - Convenient switching between autonomous and pilot-controlled modes. Engine on/off - quick access to engine control. Control lights - ability to switch lights on/off as required. Control interface: Ergonomic handle with joystick and button layout for comfortable long-term use. 7" (or larger) colour display with touch screen - clear and real-time data display. Real-time telemetry - GPS position, battery level, sensor data and other critical parameters. Programmable buttons - customisable functions according to user needs. Security and reliability: Automatic disconnection in the event of a security incident. Software updates during warranty, providing the latest features and security enhancements. Additional features: Intuitive and customisable user interface - easy to use for both novice and experienced operators. Wide operating temperature range (-10°C to +50°C) - ensures stable operation in a wide range of conditions. Included accessories - charger and carrying strap. This control panel provides complete control and safety, making unmanned boat operations efficient and comfortable in any conditions

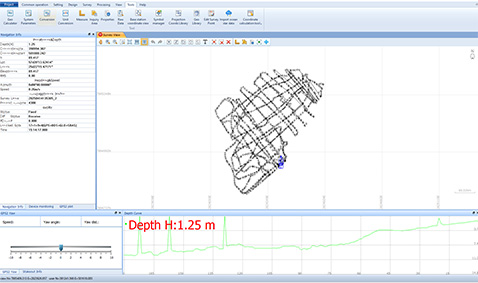

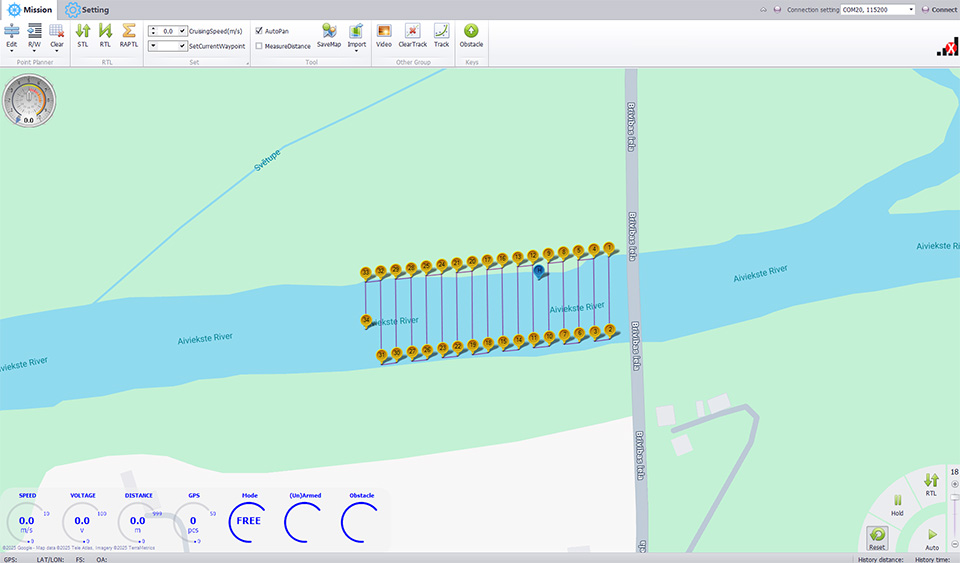

The software (ALPHA-NAV)
Provides full control and data analysis of unmanned boat operations in real time. Its permanent licence includes: Real-time visualisation of echolocation measurements - accurate depiction of depth and bottom relief. Automated mission planning - a convenient routing tool for efficient operations. Data export in popular formats (ASCII, DWG, DXF) - easy data processing and integration with other systems. UAV status. Monitoring - battery level, speed, sensor data and other critical parameters. GNSS quality and accuracy analysis - high-precision positioning monitoring. Compatible with Windows 11 Pro or equivalent, ensuring stable operation in a professional environment. Ideal solution for hydrography, research and any unmanned boat applications where reliable and functional software is required.

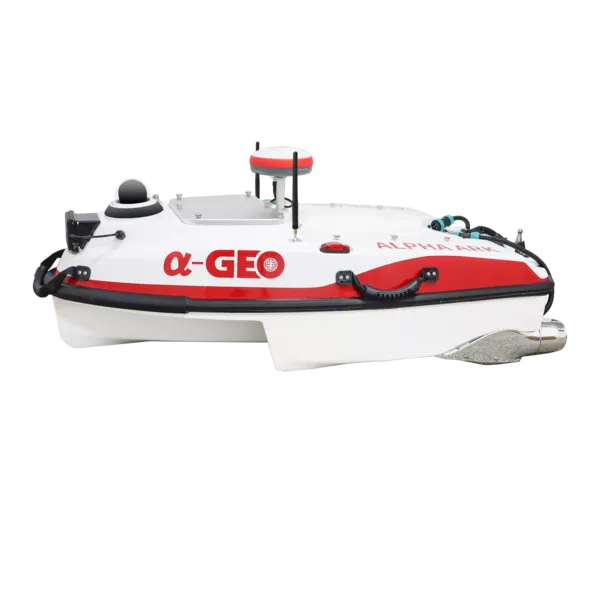

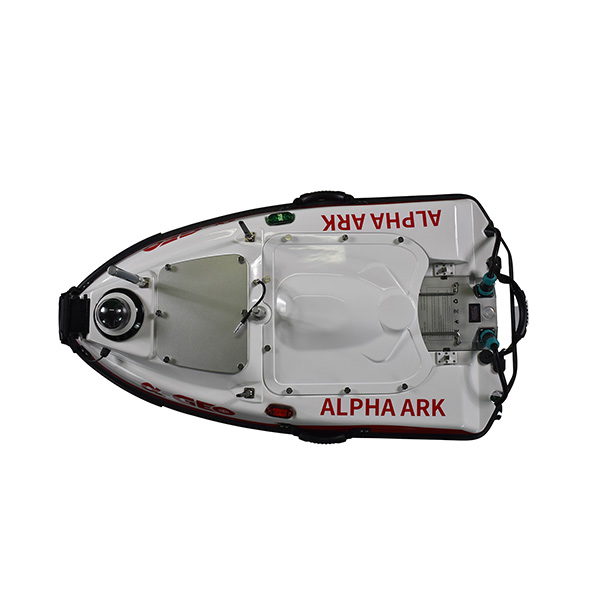

ALPHA ARK |
SPECIFICATION
Dimensions | 1180mmx620mmx345mm |
Hull material | Kevlar + Carbon fiber materials |
Hull weight | 15kg |
Standart displacement | 25kg |
Maximum displacement | 30 kg |
Anti-wave&wind | 5th wind level and 3rd wave level |
Boat shape | M-type trimaran |
Navigation lights | A pair of two-colour navigation lights |
Camera | 360° full view camera |
Available Instrumentation | Single-beam echo sounder(Standard) |
ELECTRICAL
Battery life | 6 hours (1.5-2 m/s) |
Cruising speed | 1.5 m/s - 2 m/s |
Maximum speed | 6 m/s |
Motor | Brushless DC motor (BLDCM) |
Propeller | Ducted propeller |
NAVIGATION AND COMMANDER SYSTEM
navigation model | Electrical Automatic mode Cruise mode |
Positioning system (optional) | GPS/BeiBou RTK Specified GNSS device |
Obstacle avoidance | Ultrasonic radar |
Direction control | Differential steering |
Communication loss protection | Automatically return to base when the communication is lost |
COMMUNICATION
Communication mode | Wireless point-to-point |
Communication distance | Network bridge: 3km |
Hardware configuration | Laptop/tablet/ground station (optional) |
Software platform | Windows/Android |
Software function | USV management |
Remote control unit | Waterproof, dust proof and dropproof |
SOUNDING PERFORMANCE
Frequency | 200 kHz |
Beam angle | 5° |
Sounding range | 0.4-100 km |
Sounding accuracy | ±1 cm ±0.1% D (D:depth of water) |
Resolution | 0.01 m |
Data output | RS-232 (Depth data format can be customized) |
Pressure depth | ≥50m |
