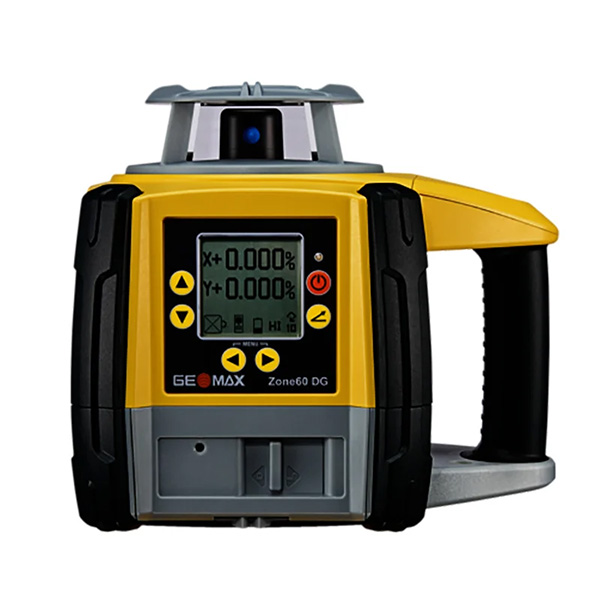

The Zone60 DG is a fully-automatic grade laser in both axes, specifically designed for crews that require dependability and accuracy on a daily basis. Digital grades can be entered up to 15% slope making it suitable for almost any construction site. Save even more time by using this laser with the ZRD105B laser receiver, which automatically catches and monitors the laser’s beam.
ZONE60DG |
SPECIFICATION
Description | Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option. |
Operating range | 900 m/3000 ft |
Self-levelling accuracy | ± 5° |
Self-levelling range | Up to 15% |
Grade range | ± 1.5 mm at 30 m (±1/16” at 100 ft) |
Rotation speed | 300, 600 rpm |
Laser diode type/class | 635 nm (visible)/ class 1 |
Batteries type | 4 D-Cell Alkaline/Li-ion |
Battery life | > 60h (alk) / > 40h (Li-Ion) |
Operating temps. | -20°C to 50°C |
Storage temp. | -30°C to 70°C |
Protection | IP67 |
