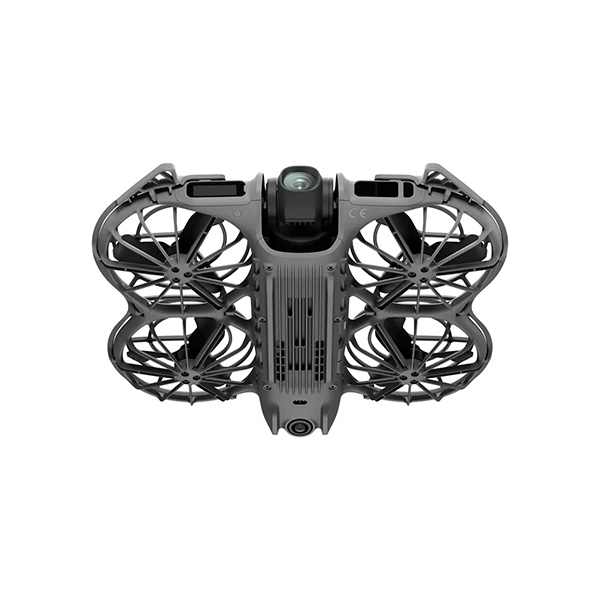

NEO 2 |
AIRCRAFT
Takeoff Weight | 151 g (without Digital Transceiver) / 160 g (with Digital Transceiver) |
Dimensions | 147×171×41 mm (with guards, no transceiver) 167×171×54 mm (with guards + transceiver) |
Max Ascent Speed | 0.5 m/s (Cine) 3 m/s (Normal) 5 m/s (Sport) |
Max Descent Speed | 0.5 m/s (Cine) 3 m/s (Normal & Sport) |
Max Horizontal Speed | 8 m/s (Normal) 12 m/s (Sport & Tracking) |
Max Takeoff Altitude | 2000 m |
Max Flight Time | Approx. 19 min (approx. 17 min with propeller guards) |
Max Hovering Time | Approx. 18 min (approx. 16.5 min with propeller guards) |
Max Flight Distance | 7 km |
Max Wind Speed Resistance | 10.7 m/s (Level 5) |
Operating Temperature | -10°C to 40°C (14°F to 104°F) |
Global Navigation Satellite System | GPS + Galileo + BeiDou |
Hovering Accuracy (Vertical) | ±0.1 m (vision) / ±0.5 m (satellite) |
Hovering Accuracy (Horizontal) | ±0.3 m (vision) / ±1.5 m (satellite) |
Internal Storage | 49 GB |
Class | C0 (EU) |
CAMERA
Image Sensor | 1/2-inch CMOS Sensor |
Lens | FOV: 119.8° |
ISO Range (Photo) | 100–3200 (Single Auto) |
ISO Range (Video) | 100–12800 (Auto) |
Shutter Speed | Video: 1/8000–1/30 s |
Max Image Size | 12 MP Photo |
Still Photography Modes | Single / Timed Shot |
Photo Format | JPEG |
Video Resolution | Horizontal: |
Video Format | MP4 |
Max Video Bitrate | 80 Mbps |
Supported File System | exFAT |
Color Mode | Normal |
EIS | Supports RockSteady and turning stabilization off |
GIMBAL
Stabilization | 2-axis mechanical (tilt, roll) |
Mechanical Range | Tilt: -125° to 105° Roll: -43° to 43° |
Controllable Range | Tilt: -90° to 70° |
Max Control Speed (tilt) | 100°/s |
Angular Vibration Range | ±0.01° |
Image Roll Correction | Supported on drone recordings (not available during live view in goggles) |
SENSING
Sensing Type | Omnidirectional monocular vision + downward infrared + forward LiDAR |
Forward | Measure: 0.5–10 mDetect: 0.5–15 mSpeed: ≤8 m/s |
Backward | Detect: 0.5–15 m |
Lateral | Detect: 0.5–15 m |
Upward | Detect: 0.5–15 m |
Downward | Detect: 0.5–15 m |
Infrared Sensor | Forward-Facing LiDAR: |
Operating Environment | Forward, Backward, Left, Right, and Upward: |
VIDEO TRANSMISSION
Video Transmission System | Standard: Wi-Fi Transmission Optional: DJI Neo 2 Digital Transceiver (O4) |
Live View Quality | With DJI RC-N3 Remote Controller: Up to 1080p/60fps |
Operating Frequency | 2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz |
Transmitter Power (EIRP) | 2.4 GHz:< 26 dBm (FCC) |
Communication Bandwidth | Max 60 MHz |
Max Transmission Distance (no interference) | FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km |
Max Transmission Distance (interference, unobstructed) | Strong Interference: Urban landscape, approx. 1.5-3 km Medium Interference: Suburban landscape, approx. 3-6 km Low Interference: Suburb/Seaside, approx. 6-10 km |
Max Transmission Distance (obstructed) | Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-3 km |
Max Download Speed | Wi-Fi: 80 MB/s |
Lowest Latency | With DJI RC-N3 Remote Controller or DJI RC 2 Remote Controller: Approx. 120 ms With DJI Goggles N3 (1080p/60fps Video Transmission): Lowest latency at 54 ms With DJI Goggles 3 (1080p/100fps Video Transmission): Lowest latency at 50 ms |
Max Video Bitrate | 60 Mbps |
Antenna | 2 antennas, 1T2R |
Wi-Fi
Protocol | 802.11a/b/g/n/ac/ax |
Operating Frequency | 2.400 GHz to 2.4835 GHz 5.725 GHz to 5.850 GHz |
Transmitter Power (EIRP) | 2.4 GHz: |
Effective Operating Range | 500 m |
BUETOOTH
Protocol | Bluetooth 5.2 |
Operating Frequency | 2.400–2.4835 GHz |
Transmitter Power (EIRP) | <10 dBm |
BATTERY
Capacity | 1606 mAh |
Weight | 46 g |
Nominal Voltage | 7.16 V |
Max Charging Voltage | 8.6 V |
Battery Type | Li-ion |
Chemical System | LiNiMnCoO2 |
Energy | 11.5 Wh |
Charging Temperature | 5° to 40° C (41° to 104° F) |
Charging Time | When Using the Two-Way Charging Hub (65W max charging power): Approx. 68 minutes to charge three batteries simultaneously from 0% to 100% When Directly Charging the Aircraft Body (15W max charging power): Approx. 70 minutes to charge from 0% to 100% |
CHARGER
Recommended Charger | DJI 65W Portable Charger |
BATTERY CHARGING HUB
Input | 5 V, max 5 A 9 V, max 5 A 12 V, max 5 A 15 V, max 4.33 A 20 V, max 3.25 A |
Output | 5 V, 2 A |
Charging Method | 3 batteries charged simultaneously (depends on charger power) |
Compatibility | DJI Neo 2 Intelligent Flight Battery |
STORAGE
Recommended microSD cards | Does not support storage expansion with an external SD card |
DJI RC-N3 REMOTE CONTROLLER
Max Operating Time | Without charging any mobile device: 3.5 hours |
Operating Temperature | -10° to 40° C (14° to 104° F) |
Charging Temperature | 5° to 40° C (41° to 104° F) |
Charging Time | 2 hours |
Charging Method | 5 V, 2 A |
Battery Capacity | 2600 mAh |
Weight | Approx. 320 g |
Dimensions | 104.2 × 150 × 45.2 mm (L×W×H) |
Operating Frequency | 2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz |
Transmitter Power (EIRP) | 2.4 GHz: |
