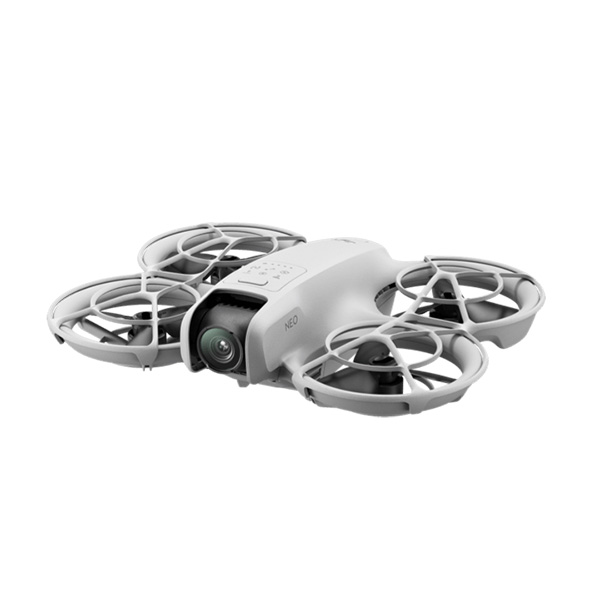

At 135 g, DJI Neo is DJI's lightest and most compact drone to date. Take off and land on your palm effortlessly without a remote controller, and capture cinematic footage with YOU in focus. Soar through breathtaking scenery, indoors and out, and be sure to include everybody in a group photo. Enjoy a fresh perspective on everyday life with DJI Neo.
NEO |
SPECIFICATION
Takeoff weight | Approx. 135 g |
Dimensions | 130x157x48.5 mm (LxWxH) |
Max ascent speed | 0.5 m/s (Cine mode) 2 m/s (Normal mode) 3 m/s (Sport mode) |
Max descent speed | 0.5 m/s (Cine mode) 2 m/s (Normal mode) 2 m/s (Sport mode) |
Max horizontal speed (near sea level, no wind) | 6 m/s (Normal mode) 8 m/s (Sport mode) 16 m/s (Manual mode) |
Max takeoff altitude | 2000 m |
Max flight time | Approx. 18 mins (approx. 17 mins with the Propeller Guards) Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession |
Max hovering time | Approx. 18 mins (approx. 17 mins with the Propeller Guards) |
Max flight distance | 7 km |
Max wind speed resistance | 8 m/s (Level 4) |
Operating temperature | -10° to 50°C (14° to 104°F) |
Global navigation satellite system | GPS + Galileo +BeiDou |
Hovering accuracy range | Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with GNSS positioning) |
Internal storage | 22 Gb |
Class | C0 (EU) |
CAMERA
Image sensor | 1/2-inch image sensor |
Lens | FOV: 117.6° Format Equivalent: 14 mm Aperture: f/2.8 Focus: 0.6 m to ∞ |
ISO range | 100-6400 (Auto) 100-6400 (Manual) |
Shutter speed | Video: 1/8000-1/30 s Photo: 1/8000-1/10 s |
Max image size | 12 MP Photo 4000×3000 (4∶3) 4000×2256 (16∶9) |
Still photography modes | Single/Timed shot |
Photo format | JPEG |
Video resolution | EIS Off: 4K (4:3): 3840×2880@30fps 1080p (4:3): 1440×1080@60/50/30fps EIS On: 4K (16:9): 3840×2160@30fps 1080p (16:9): 1920×1080@60/50/30fps |
Video format | MP4 |
Max video bitrate | 75 Mbps |
Supported file system | exFAT |
Color mode | Normal |
EIS | Supports RockSteady, HorizonBalancing, and turning stabilization off |
GIMBAL
Stabilization | Single-axis mechanical gimbal (tilt) |
Mechanical range | Tilt: -120° to 120° |
Controllable range | Tilt: -90° to 60° |
Max control speed (tilt) | 100°/s |
Angular vibration range | ±0.01° |
SENSING
Sensing type | Downward visual positioning |
Downward | Precise Hovering Range: 0.5-10 m |
Operating environment | Downward: Non-reflective, discernible surfaces with diffuse reflectivity of >20% (such as walls, trees, or people) Adequate lighting (lux > 15, normal indoor lighting conditions) |
VIDEO TRANSMISSION
Video transmission system | O4 |
Live view quality | With DJI RC-N3 Remote Controller: Up to 1080p/30fps With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps |
Operating frequency | 2.400-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz |
Transmitter power (EIRP) | 2.4 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 26 dBm (FCC) < 14 dBm (CE) < 26 dBm (SRRC) |
Communication bandwidth | Max 40 MHz |
Max Transmission Distance (unobstructed, free of interference) | FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km |
Max Transmission Distance (unobstructed, with interference) | Strong Interference (urban landscape): Approx. 1.5-3 km Medium Interference (suburban landscape): Approx. 3-6 km Low Interference (suburb/seaside): Approx. 6-10 km |
Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: approx. 0.5-3 km |
Max Download Speed | Wi-Fi: 25 MB/s |
Lowest Latency | With DJI RC-N3 Remote Controller: Approx. 120 ms |
Max video bitrate | 50 Mbps |
Antennas | Two antennas, 1T2R |
Wi-Fi:
Protocol | 802.11a/b/g/n/ac |
Operating frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
Transmitter power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: <20 dBm (FCC/SRRC) <14 dBm (CE) |
Effective operating range | 50 m |
BLUETOOTH
Protocol | Bluetooth 5.1 |
Operating frequency | 2.400-2.4835 GHz |
Transmitter power (EIRP) | < 10 dBm |
BATTERY
Capacity | 1435 mAh |
Weight | Approx. 45 g |
Nominal voltage | 7.3 V |
Max charging voltage | 8.6 V |
Type | Li-ion |
Energy | 10.5 Wh |
Charing temperature | 5° to 40° C (41° to 104° F) |
Charging time | When Using the Two-Way Charging Hub (60W max charging power): Approx. 60 minutes to charge three batteries simultaneously from 0% to 100% When Directly Charging the Aircraft Body (15W max charging power): Approx. 50 minutes to charge from 0% to 100% |
CHARGER
recommended charger | DJI 65W Portable Charger USB Power Delivery charger |
BATTERY CHARGING HUB
Input | 5 V, 3 A 9 V, 3 A 12 V, 3 A 15 V, 3 A 20 V, 3 A |
Output (Charging) | 5 V, 2 A |
Charging type | 3 Batteries charged simultaneously |
Compatibility | DJI Neo Intelligent Flight Battery |
STORAGE
Recommended microSD Cards | Does not support storage expansion with an external SD card |
DJI RC-N3 REMOTE CONTROLLER
Max operating time | Without Charging Any Mobile Device: 3.5 hours When Charging a Mobile Device: 1.5 hours |
Operating temperature | -10° to 40° C (14° to 104° F) |
Charging temperature | 5° to 40° C (41° to 104° F) |
Charging time | 2 hours |
Charging type | 5 V, 2 A |
Battery capacity | 2600 mAh |
Weight | Approx. 320 g |
Dimensions | 104.2x150x45.2 mm (LxWxH) |
Operating frequency | 2.400-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz |
Transmitter power (EIRP) | 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC) |
