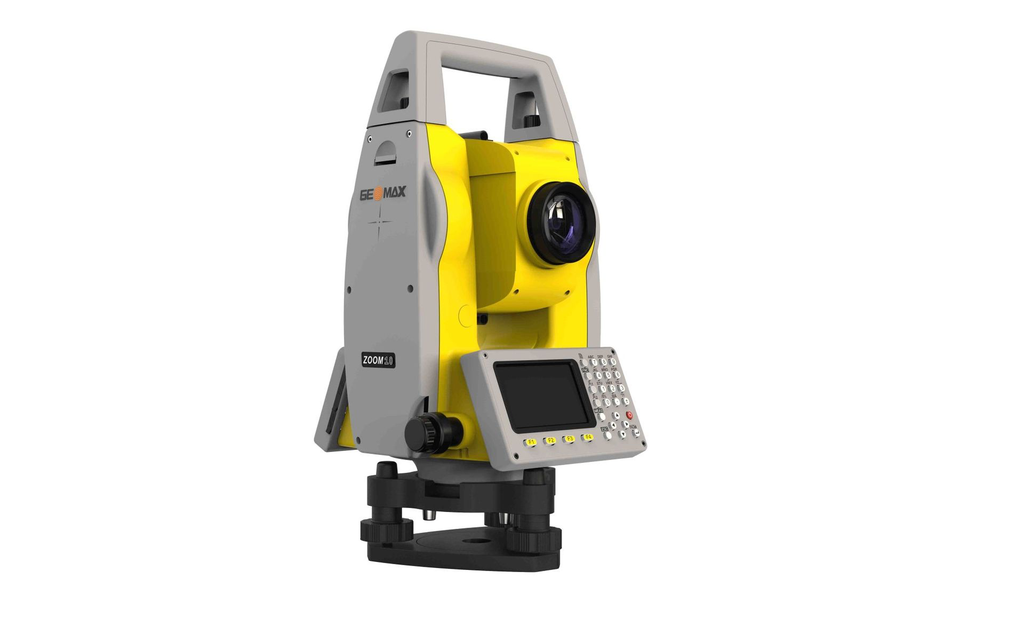

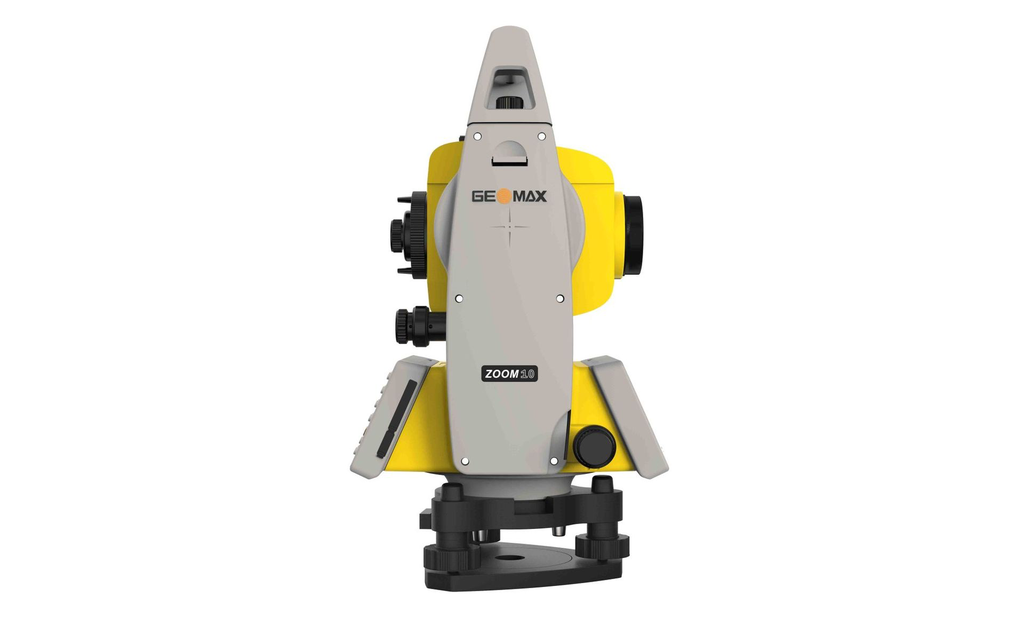

Best performance and value ratio The Zoom10 has been created following your field work requirements. You want to get familiar with a user friendly and cost effective manual total station? The Zoom10 is made for you. To make your job easier, intuitive onboard software runs on two built-in displays. It ensures quick and accurate reflectorless measurement up to a range of 350 m and angular accuracy of 2”. In combination with X-PAD software, the Zoom10 seamlessly integrates with your workflow to combine and process data from every sensor into one platform.
ZIPP 02 DIGITAL THEODOLITE |
SPECIFICATION
Accuracy | 2'' |
Display resolution | 1'',5'',10'' |
Method | Absolute encoding |
Compensation | Dual axis |
TELESCOPE
Type | - |
Magnification | 30x |
NavLight™ Range | - |
NavLight™ Accuracy | - |
DISTANCE MEASUREMENTS - PRISM
Range | 3000 m |
Accuracy | 3 mm + 2 ppm |
Typ. time (fast/standart) | 1/1.5 sec |
DISTANCE MEASUREMENTS - NON-PRISM
Range | 350 m |
Accuracy | 3 mm + 2 ppmm |
Footprint | 8 x 20 mm @ 50 m |
INTERFACE
Keyboard | Two full alphanumeric |
Display | B&W, high res., 160 x 96 pixels with backlight, 6 lines |
Date recording | Internal memory, 20,000 points |
Bluetooth | yes |
Removable memory | SD card |
Ports | Serial, USB mini |
SOFTWARE
Operating System | Embedded CE |
Open for 3rd party SW | Open to X-PAD Ultimate GO |
Basic package | - |
Advanced package | - |
PHYSICAL SPECIFICATION
Weight | Approx. 5.5 kg with battery & tribrach |
Operating temperature | -20 °C to 50 °C |
Protection class | IP54 |
POWER SUPPLY
Type/Operating time | Removable, 10 hours |
PLUMMET
Type | Laser point, adjustable brightness |
