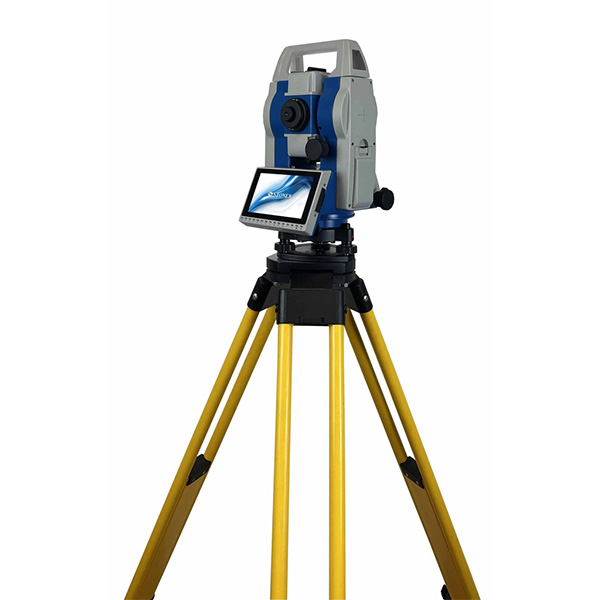

The R60 is a device with a 5.5-inch touch screen and the Android operating system, which provides users with a smartphone-like experience in terms of ease of use and familiarity. With the Android OS, operators can easily access a wide range of features and functions, making their work more efficient and productive. The R60 is available in two versions, one with an accuracy of 2″ and endless drives, and the other with an accuracy of 1″ and lock drives. With a prism, the instrument has an accuracy of 2 mm + 2 ppm, and it can measure reflectorless up to a range of 1000 m.
R60 |
SPECIFICATION
Accuracy | 1'', 2' |
Display resolution | 0.1〞 |
Reading system | Absolute encoding |
Angle units | DEG 360° |
TELESCOPE
Magnification/Field of view | 30x/1°30’ |
Tube lenght | 156 mm |
Minimum focus distance | 1.0 m (3.3 ft) |
Reticle Illumination | 10 brightness levels adjustable |
Effective aperture | Ø 45 mm |
Laser pointer | Red light, coaxial |
TILT SENSOR
Type | Dual axis |
Compensation range/accuracy | ≥3.0′ |
DISTANCE MEASUREMENT RANGE
Prism mode | 5.000 m |
Reflect sheet (6 cm x 6 cm)3 | 800 m |
Reflectorless | 1000 m |
DISTANCE MEASUREMENT ACCURACY
Prism mode | 2 mm + 2ppm |
Reflect sheet (6 cm x 6 cm)3 | 3 mm + 2 ppm |
Reflectorless | 3 mm + 2 ppm |
MEASUREMENT TIME
Prism (Track/Fast/Standard) | 0.4 / 0.6 / 1.0 sec |
Reflectorless | 1.5-5 sec |
DISTANCE MEASUREMENT
Distance units | m |
Display Resolution | 0.0001 m |
LASER PLUMMET
Laser type | 635nm semiconductor laser |
Accuracy | ±1.0 mm @ 1.5 m |
Spot | 2.5 mm @ 1.5 m |
LEVEL VIAL SENSITIVITY
Plate level | 30“/ 2 mm |
Circular level | 8‘/ 2 mm |
ENVIROMENTAL CONDITIONS
Operating temperature | -20°C to +50°C (-4°F to +122°F) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Waterproof/Dustproof | IP55 |
PHYSICAL SPECIFICATION
Dimensions | 358 x 211 x 220 mm |
Weight including battery and tribrach | 6.5 Kg |
POWER
Battery Voltage/Capacity/Type | 7.2Vdc / 5200mAh /Li-ion |
Batteries number | 2 |
Operating Time | Up to 8 hours (with one battery) |
Battery Charger | AC 100 - 240V, charging time 3h |
OTHER SPECIFICATIONS
CPU | CORTEX-A55 Quad-Core |
Display | 5.5” color touch, 720 x 1280 px |
OS | Android 11 |
Memory | 4GB+32GB |
Interface | USB type-A |
Guide light | Yes |
Sensors | Temperature / Pressure |
ONBOARD FIELD APPLICATION PROGRAMS
Cube-a TS-GPS, R60 Manager |
