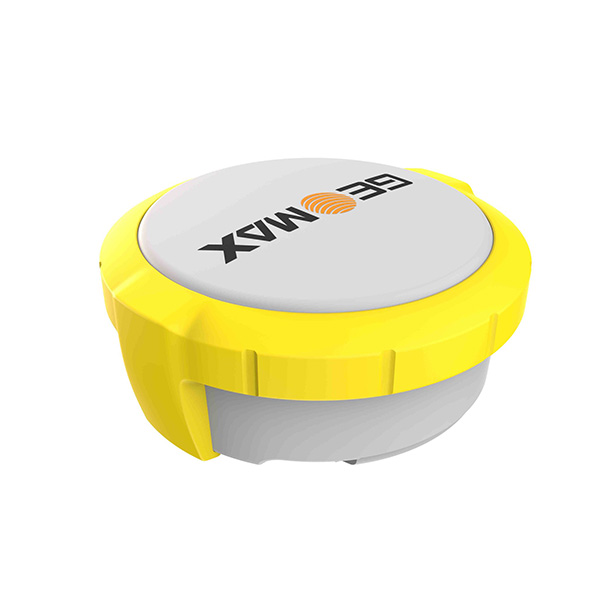

ZENITH16 |
VASTUVÕTJA SPECIFICATION
mõõtmine Engine | NovAtel OEM7, 555 channels, multi-sagedus, multi-constellation |
GPS jälgimine | L1 C/, L1C, L2C, L2P, L5 |
GLONASS jälgimine | L1 C/, L2 C/, L2P, L3 |
BeiDou jälgimine | B1, B2, B3 |
Galileo jälgimine | E1, E5a, E5b, AltBOC, E6 |
QZSS jälgimine | L1, L2, L5, L6 |
NaviC | L5 |
SBAS (EGNOS, WAAS, MSAS, GAGAN) | L1, L5 |
Precise Point POSITSIONEERIMINE (PPP) | TerraStar C Pro, L-Band (opt) |
POSITSIONEERIMINE kiirus | 5Hz, 20Hz (opt) |
aeg jaoks Initialization | Typically 4s |
COMMUNICATION
RTK andmed protocols | CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM |
NMEA väljund | NMEA 0183 |
UHF radio moodul | SATEL TR4+ transceiver edastus toide 0.5 ja 1.0 W; Frequency ulatus 403 kuni 473 MHz (opt) |
Bluetooth® | seade class II QR-iConnect functionality |
TNC ühendus | High sensitivity, UHF antenn |
sideport | USB, seeria & toide |
LIIDESED
klaviatuur | On/Off button, function buttons |
LED olek indicators | Position, RTK, toide, salvestusruum Bluetooth® |
andmed recording | MicroSD kaart |
VASTUVÕTJA TÄPSUS (RMS)
RTK | H: 8 mm + 1 ppm v: 15 MM + 1 ppm |
Network RTK | H: 8 mm + 0.5 ppm v: 15 MM + 0.5 ppm |
Static | H: 3 mm + 0.5 ppm v: 5 MM + 0.5 ppm |
Static long | H: 3 mm + 0.5 ppm v: 3.5 MM + 0.5 ppm |
TerraStar C Pro ppp | H: < 2.5 cm V < 5 cm |
TOIDE SUPPLY
Internal aku | Li-Ion 2.6 Ah / 7.4 V |
tööaeg | 7 h sisse static / 6 h sisse rover režiim |
väline toide | 10.5 V kuni 28 V koos ZDC225 kaabel |
PHYSICAL SPETSIFIKATSIOONID
mõõtmed | kõrgus 95 mm, Ø 198 mm |
Kaal | 1.14 kuni 1.18 kg ilma akud |
Operating temp. | –40°C kuni 65°C |
Environmental protection | IP68 (IEC 60529) Withstands powerful jets ja temp. immersion under water MIL-STD-810H 512.6 procedure I MIL-STD-810H 510.7 procedure I Fully dust tight MIL-STD-810G 1 510.6 |
Humidity | 100% condensing |
Vibration | Mechanical stress resistant according kuni ISO 9022-36-05 |
Shock | Withstands 2 m drop onto kõva surface |
