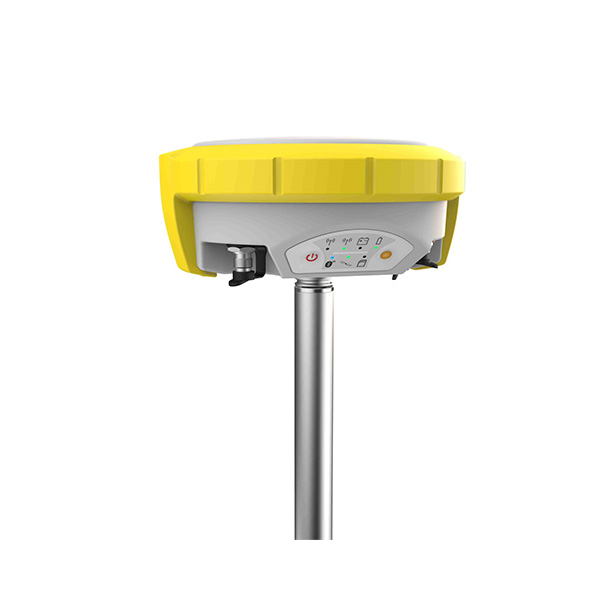

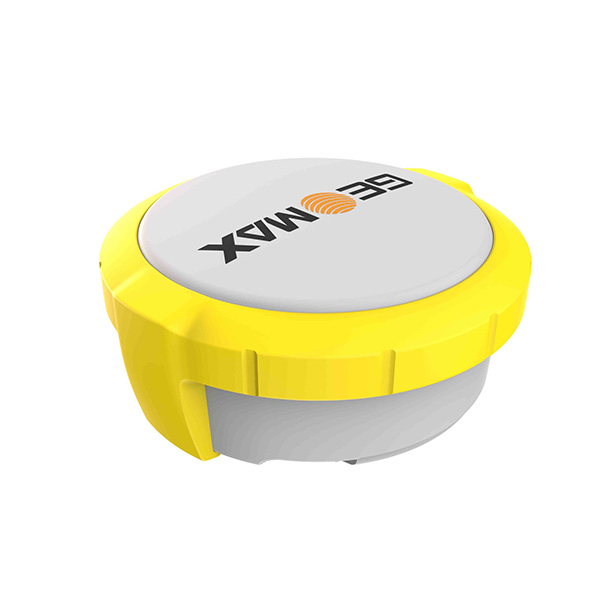

ZENITH16 |
RECEIVER SPECIFICATION
Measurement Engine | NovAtel OEM7, 555 channels, multi-frequency, multi-constellation |
GPS tracking | L1 C/A, L1C, L2C, L2P, L5 |
GLONASS tracking | L1 C/A, L2 C/A, L2P, L3 |
BeiDou tracking | B1, B2, B3 |
Galileo tracking | E1, E5a, E5b, AltBOC, E6 |
QZSS tracking | L1, L2, L5, L6 |
NaviC | L5 |
SBAS (EGNOS, WAAS, MSAS, GAGAN) | L1, L5 |
Precise Point Positioning (PPP) | TerraStar C Pro, L-Band (opt) |
Positioning rate | 5Hz, 20Hz (opt) |
Time for Initialization | Typically 4s |
COMMUNICATION
RTK data protocols | CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM |
NMEA Output | NMEA 0183 |
UHF radio module | SATEL TR4+ transceiver transmission power 0.5 and 1.0 W; Frequency range 403 to 473 MHz (opt) |
Bluetooth® | Device class II QR-iConnect functionality |
TNC connector | High sensitivity, UHF antenna |
Communication port | USB, serial & power |
INTERFACES

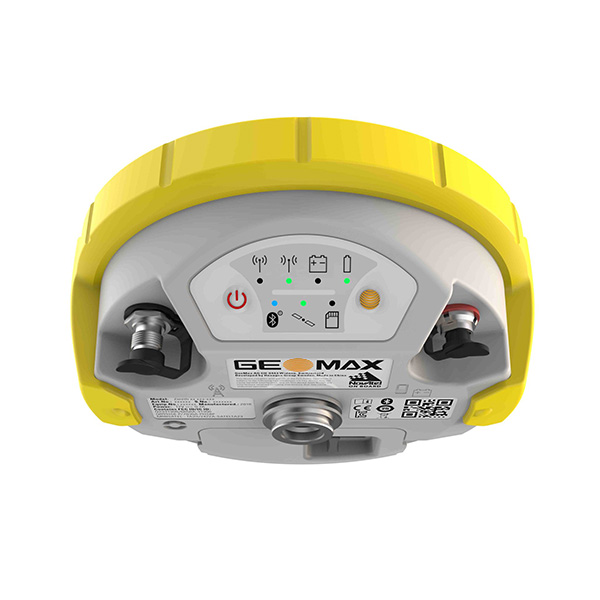

Keyboard | On/Off button, function buttons |
LED status indicators | Position, RTK, Power, Storage Bluetooth® |
Data recording | microSD card |
RECEIVER ACCURACY (RMS)
RTK | H: 8 mm + 1 ppm v: 15 MM + 1 ppm |
Network RTK | H: 8 mm + 0.5 ppm v: 15 MM + 0.5 ppm |
Static | H: 3 mm + 0.5 ppm v: 5 MM + 0.5 ppm |
Static long | H: 3 mm + 0.5 ppm v: 3.5 MM + 0.5 ppm |
TerraStar C Pro ppp | H: < 2.5 cm V < 5 cm |
POWER SUPPLY
Internal battery | Li-Ion 2.6 Ah / 7.4 V |
Operating time | 7 h in static / 6 h in rover mode |
External power | 10.5 V to 28 V with ZDC225 cable |
PHYSICAL SPECIFICATIONS
Dimensions | Height 95 mm, Ø 198 mm |
Weight | 1.14 to 1.18 kg without batteries |
Operating temp. | –40°C to 65°C |
Environmental protection | IP68 (IEC 60529) Withstands powerful jets and temp. immersion under water MIL-STD-810H 512.6 procedure I MIL-STD-810H 510.7 procedure I Fully dust tight MIL-STD-810G 1 510.6 |
Humidity | 100% condensing |
Vibration | Mechanical stress resistant according to ISO 9022-36-05 |
Shock | Withstands 2 m drop onto hard surface |
