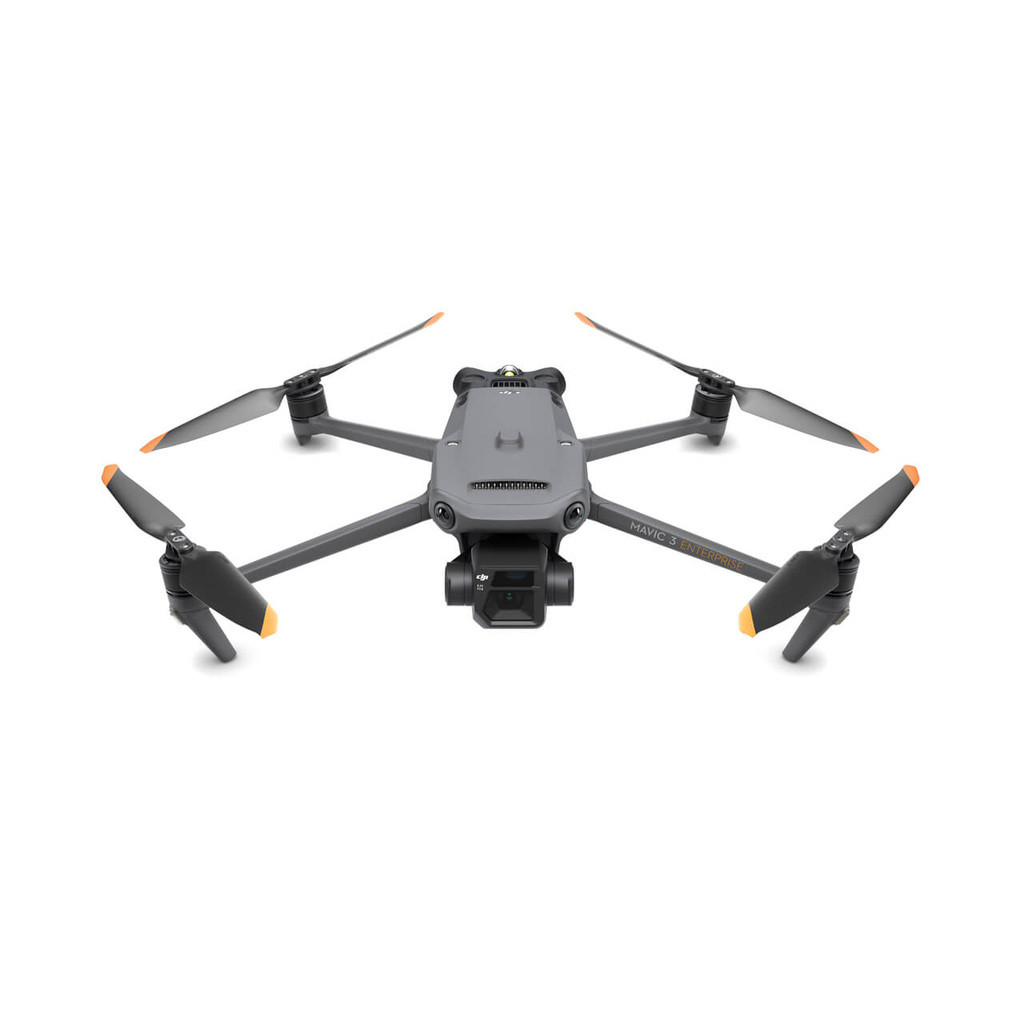

Mavic 3 Enterprise Series

With a mechanical shutter, a 56× zoom camera, and an RTK module for centimeter-level precision, the Mavic 3E brings mapping and mission efficiency to new heights. A thermal version is available for firefighting, search and rescue, inspection, and night operations.

DJI MAVIC 3 ENTERPRISE SERIES

SPECIFICATION

Weight	DJI Mavic 3E: 915 g DJI Mavic 3T: 920 g
Takeoff weight	DJI Mavic 3E: 1,050 g DJI Mavic 3T: 1,050 g
Dimensions	Folded (without propellers): 221×96.3×90.3 mm (L×W×H) Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal distance	380.1 mm
Max Ascent speed	6 m/s (Normal Mode) 8 m/s (Sport Mode)
Max Descent speed	6 m/s
Max Flight Speed (at sea level, no wind)	15 m/s (Normal Mode) Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
Max Wind Speed Resistance	12 m/s
Max takeoff altitude	6000 m (without payload)
Max Flight Time (no wind)	45 minutes
Max Hover Time (no wind)	38 minutes
Max flight distance	32 km
Max pitch angle	30° (Normal Mode) 35° (Sport Mode)
Operating temperature	-10° to 40° C (14° to 104° F)
Global navigation satellite system	GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Internal Storage	N/A

Wide Camera

Sensor	DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
Lens	DJI Mavic 3E: FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞ DJI Mavic 3T: FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8 Focus: 1 m to ∞
ISO Range	DJI Mavic 3E: 100-6400 DJI Mavic 3T: 100-25600
Shutter speed	DJI Mavic 3E: Electronic Shutter: 8-1/8000 s Mechanical Shutter: 8-1/2000 s DJI Mavic 3T: Electronic Shutter: 8-1/8000 s
Max image size	DJI Mavic 3E: 5280×3956 DJI Mavic 3T: 8000×6000
Still photography modes	DJI Mavic 3E: Single: 20 MP Timed: 20 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s JPEG+RAW: 3/5/7/10/15/20/30/60 s Smart Low-light Shooting: 20 MP Panorama: 20 MP (raw image) DJI Mavic 3T: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 2/3/5/7/10/15/20/30/60 s Panorama: 12 MP (raw image); 100 MP (stitched image)
Video resolution	H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps
Bitrate	DJI Mavic 3E: 4K: 130 Mbps FHD: 70 Mbps DJI Mavic 3T: 4K: 85 Mbps FHD: 30 Mbps
Supported file formats	exFAT
Photo format	DJI Mavic 3E: JPEG/DNG (RAW) DJI Mavic 3T: JPEG
Video format	MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Supported file system	exFAT

GIMBAL

Stabilization	3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range	DJI Mavic 3E: Tilt: -135° to 100° Roll: -45° to 45° Pan: -27° to 27° DJI Mavic 3T: Tilt: -135° to 45° Roll: -45° to 45° Pan: -27° to 27°
Controllable Range	Tilt: -90° to 35° Pan: Not controllable
Max control speed (Tilt)	100°/s
Angular vibration range	±0.007°

SENSING

Sensing type	Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward	Measurement Range: 0.5-20 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤15 m/s FOV: Horizontal 90°, Vertical 103°
Backward	Measurement Range: 0.5-16 m Effective Sensing Speed: Flight Speed ≤ 12 m/s FOV: Horizontal 90°, Vertical 103°
Lateral	Measurement Range: 0.5-25 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 85°
Upward	Measurement Range: 0.2-10 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 100°, Left and Right 90°
Downward	Measurement Range: 0.3-18 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 130°, Left and Right 160°
Operating environment	Forward, Backward, Left, Right, and Upward surfaces with discernible patterns and adequate lighting (lux >15) Downward:surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)

THERMAL CAMERA

Thermal imager	Uncooled VOx Microbolometer
Pixel pitch	12 μm
Frame rate	30 Hz
Lens	DFOV: 61° Format Equivalent: 40 mm Aperture: f/1.0 Focus: 5 m to ∞
Noise equivalent temperature difference (NETD)	≤50 mK@F1.0
Temperature measurement method	Spot Meter, Area Measurement
Temperature measurement range	-20° to 150° C (-4° to 302° F, High Gain Mode) 0° to 500° C (32° to 932° F, Low Gain Mode)
Palette	White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo format	JPEG (8-bit) R-JPEG (16-bit)
Video Resolution	640×512@30fps
Bitrate	6 Mbps
Video Format	MP4 (MPEG-4 AVC/H.264)
Still photography modes	DJI Mavic 3T: Single: 640×512 Timed: 640×512 JPEG: 2/3/5/7/10/15/20/30/60 s
Digital zoom	28 x
Infrared wavelength	8-14 μm
Infrared temperature measurement accuracy	±2° C or ±2% (using the larger value)

BATTERY

Capacity	5000 mAh
Weight	335.5 g
Nominal voltage	15.4 V
Max charging voltage	17.6 V
Type	Li-ion 4S
Energy	77 Wh
Charging temperature	5° to 40° C (41° to 104° F)
Charging time	Approx. 96 minutes

CHARGER

Input

100-240 V (AC Power), 50-60 Hz, 2.5 A

Output power

100 W

Output

Max. 100 W (total) When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the

two ports according to the load power.

BATTERY CHARGING HUB

Input	USB-C: 5-20 V, 5.0 A
Output	Battery Port: 12-17.6 V, 8.0 A
Rated power	100 W
Charging type	Three batteries charged in sequence
