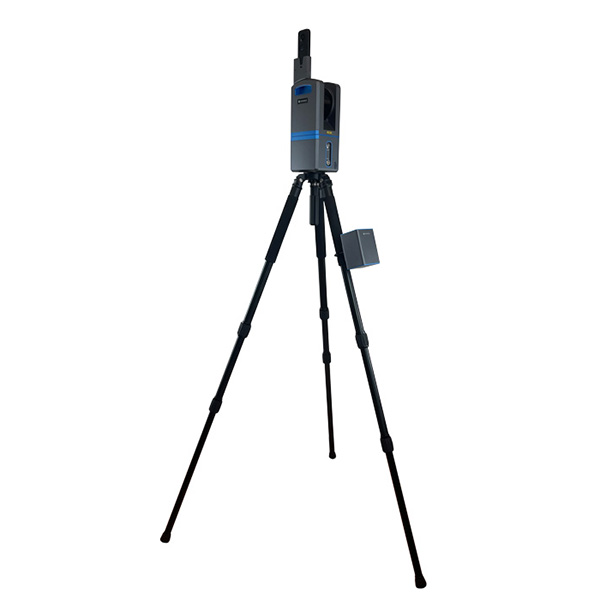

X100 is a small and compact terrestrial laser scanner that is quick and easy to use. Its multi-line lidar technology and ability to achieve complete coverage of the surrounding area enable it to calculate 3D models for a wide range of applications and scenarios, both outdoors and indoors. The scanner comes with its own X100app field app, making it easy to control the device. Thanks to the scan converter, the data is compatible with Cube-3d and Stonex Reconstructor, as well as third-party software. The X100 is the perfect tool for quick topographic surveys, scans of building facades and data collection for floor plans; a quick 360° scan takes as few as 45 seconds. The built-in panoramic camera allows you to add true colour to your scans. X100 is the perfect instrument for efficient and precise work in a wide range of applications:
- Land & Excavation
- Architecture & Real Estate
- Emergency Management
X100 |
SPECIFICATION
Max range | 120 m |
Min range | 0.5 m |
Vertical resolution | 16 channels |
Scanning Point Frequency | 320.000 pts/s |
Scan principle | ToF |
Field of view | Horizontal 360° |
Laser class | Class 1 |
Wavelenght | 905nm |
PERFORMANCE
Measuring mode | 2 modes: Normal and High |
Collection time | From 45s to 225s |
Relative accuracy | Up to 6 mm |
Resolution | 6 mm @10 m |
Dual axis tilt compensation | +5° |
CAMERA
Dimension | 66 mm x 22.5 mm x 160 mm |
FOV | 360° |
Resolution | 18MP (6080x3040) |
Management | Integrated in X100app |
SYSTEM
Data storage | U-Disk 64GB |
Operation mode | Realtime visualization (Android 10 or above) |
Communication | Wi-Fi |
ELECTRICAL SPECIFICATION
Power consumption | 28W |
Operating time | 6h (2 batteries - 3h each) |
Capacity | 25700mAh x2 |
PHYSICAL SPECIFICATION
Operating temperature | 0°C to +40°C (+32°F to +104° F) |
Storage temperature | -20°C to +60°C (-4°F to +140° F) |
Waterproof/Dustproof | IP54 |
X100 Weight | 3,2 kg |
X100 Size | 125 mm x 113 mm x 275 mm |
Case weight | 3 kg |
Case size | 428 mm x 350 mm x 230 mm |
Tripod weight | 1,92 kg |
Tripod height | 1,5 m |
