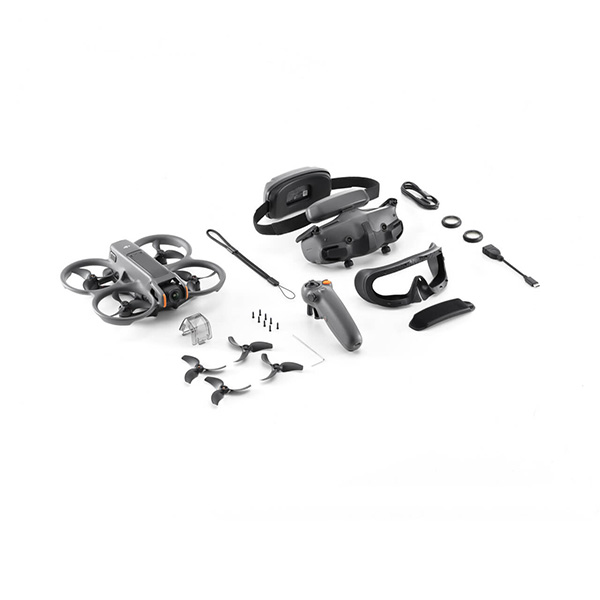

Soar, dive, and roll for stunning aerial footage with a single push. Capturing epic FPV footage with DJI RC Motion 3 and Avata 2 is easier than ever.

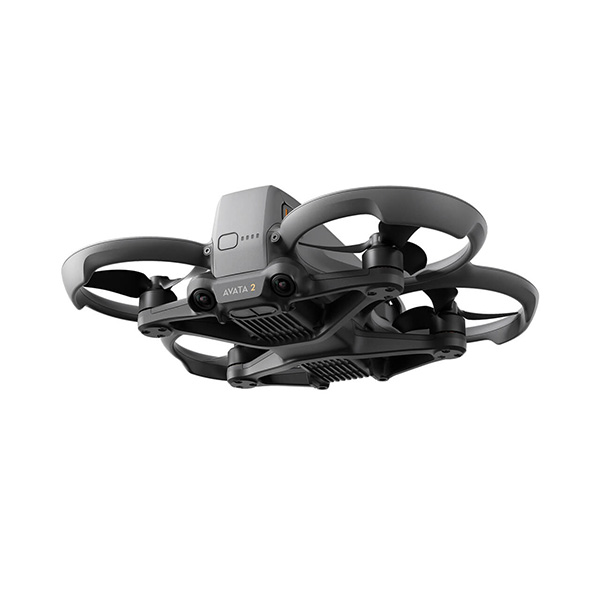

AVATA 2 |
AIRCRAFT
Takeoff Weight | Approx. 377 g |
Dimensions | 185×212×64 mm (L×W×H) |
Max Ascent Speed | 6 m/s (Normal mode) |
Max Descent Speed | 6 m/s (Normal mode) |
Max Horizontal Speed | 8 m/s (Normal mode) |
Max Takeoff Altitude | 5000 m |
Max Flight Time | Approx. 23 mins |
Max Hovering Time | Approx. 21 mins |
Max Flight Distance | 13.0 km |
Max Wind Speed Resistance | 10.7 m/s (Level 5) |
Operating Temperature | -10° to 40°C (14° to 104°F) |
Global Navigation Satellite System | GPS + Galileo + BeiDou |
Hovering Accuracy Range (Vertical) | ±0.1 m (vision positioning) |
Hovering Accuracy Range (Horizontal) | ±0.3 m (vision positioning) |
Internal Storage | 46 GB |
Class | C1 (EU) |
CAMERA
Image Sensor | 1/1.3-inch CMOS |
Lens | FOV: 155° |
ISO Range | Auto: 100–25600 |
Shutter Speed | Video: 1/8000–1/30 s |
Max Image Size | 4000×2256 (16:9) |
Still Photography Mode | Single shot |
Photo Format | JPEG |
Video Resolution | 4K (4:3): 3840×2880 @ 30/50/60 fps |
Video Format | MP4 (H.264 / H.265) |
Max Video Bitrate | 130 Mbps |
Supported File System | exFAT |
Color Mode | Standard D-Log M |
Camera FOV Modes | Normal |
EIS (Stabilization) | Supports RockSteady 3.0+ and HorizonSteady (can be disabled) |
GIMBAL
Stabilization | Single-axis mechanical gimbal (tilt) |
Mechanical Range | Tilt: -95° to 90° |
Controllable Range | Tilt: -85° to 80° |
Max Control Speed (Tilt) | 100°/s |
Angular Vibration Range | ±0.01° |
Electronic Roll Axis | Real-time screen correction unavailable during recording, can be applied to footage post-flight |
SENSING
Sensing Type | Downward and backward visual positioning |
Downward | ToF Effective Measurement Height: 10 m Precise Hovering Range: 0.3–10 m Measurement Range: 0.3–20 m FOV: 78° (H) × 78° (V) |
Backward | Measurement Range: 0.5–20 m FOV: 78° (H) × 78° (V) |
Operating Environment | Diffuse reflective surfaces with discernible patterns (reflectivity >20%, e.g., concrete pavement) Adequate lighting (lux >15, normal indoor conditions) |
VIDEO TRANSMISSION
Video Transmission System | O4 |
Live View Quality | 1080p @ 30/50/60/100 fps |
Operating Frequency | 2.400–2.4835 GHz 5.170–5.250 GHz 5.725–5.850 GHz |
Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC) <20 dBm (CE/SRRC/MIC) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC) <30 dBm (SRRC) <14 dBm (CE) |
Communication Bandwidth | Max 60 MHz |
Max Transmission Distance | FCC: 13 km (subject to max flight distance) CE: 10 km SRRC: 10 km MIC: 10 km |
Max Transmission Distance | Strong: Urban 1.5–4 km Medium: Suburban 4–10 km Low: Suburb/Seaside 10–13 km |
Max Transmission Distance | Low Interference + Buildings: 0–0.5 km Low Interference + Trees: 0.5–3 km |
Max Download Speed | Wi-Fi: 30 MB/s |
Lowest Latency | With DJI Goggles 3: 1080p@100fps: 24 ms 1080p@60fps: 40 ms |
Max Video Bitrate | 60 Mbps |
Antennas | 4 antennas, 2T4R |
Wi-Fi
Protocol | 802.11a/b/g/n/ac |
Operating Frequency | 2.400–2.4835 GHz |
Transmitter Power (EIRP) | 2.4 GHz: |
BLUETOOTH
Protocol | Bluetooth 5.0 |
Operating Frequency | 2.400–2.4835 GHz |
Transmitter Power (EIRP) | <10 dBm |
INTELLIGENT FLIGHT BATTERY
Capacity | 2150 mAh |
Weight | Approx. 145 g |
Standard Voltage | 14.76 V |
Max Charging Voltage | 17 V |
Battery Type | Li-ion |
Energy | 31.7 Wh @ 0.5C |
Charging Temperature | 5°–40°C (41°–104°F) |
Charging Time | With Charging Hub (60W): 0–100% ≈ 45 min / 10–90% ≈ 30 min |
CHARGER
Recommended Charger | DJI 65W Portable Charger |
Input | 5–20 V, max 3 A |
Output (Power Accumulation) | Max 65 W |
Output (Charging) | Max 17 V |
Output (USB) | 5 V, 2 A |
Charging Type | Three batteries charged in sequence |
Compatibility | DJI Avata 2 Intelligent Flight Battery |
STORAGE
Recommended microSD Cards | Kingston CANVAS Go! Plus 64GB/128GB/256GB/512GB U3 A2 V30 microSDXC Lexar Professional 1066x 64GB/128GB/256GB/512GB U3 A2 V30 microSDXC |
DJI FPV REMOTE CONTROLLER 3
Max Operating Time | Approx. 10 hours |
Operating Temperature | -10° to 40°C (14° to 104°F) |
Charging Temperature | 0° to 50°C (32° to 122°F) |
Charging Time | 2 hours |
Charging Type | 5 V, 2 A |
Battery Capacity | 2600 mAh |
Weight | Approx. 240 g |
Dimensions | 165×119×62 mm (L×W×H) |
Operating Frequency | 2.400–2.4835 GHz |
Transmitter Power (EIRP) | 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) |
