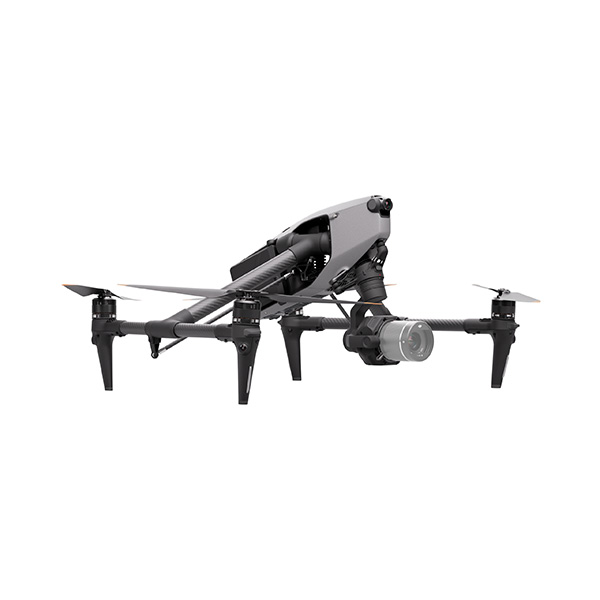

Inspire 3

Inheriting the classic transformable configuration of the Inspire series, Inspire 3 uses an all-new design that supports 360° Pan and Tilt Boost structures. When the landing gear is lowered, the gimbal supports obstruction-free 80° upward-angle shooting, enabling cinematographers to capture strikingly innovative shots.
14,999.00 € 14,999.00 €

  • Brand
  • Weight
  • Operating time
  • Wind resistance
  • Image sensor
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Brand: DJI
Weight: approx 3.995 g
Operating time: Approx. 28 minutes (landing gear lowered)
Wind resistance: Takeoff/land: 12 m/s ; In-flight: 14 m/s
Image sensor: 35mm full-frame CMOS

Inspire 3 integrates high-precision RTK positioning technology used in industries such as architecture and surveying to deliver centimeter-level accuracy. Compared with traditional meter-level positioning supported by Global Navigation Satellite Systems (GNSS), RTK not only makes flying more stable, but also makes flight-route planning more accurate, significantly improving creative efficiency.

INSPIRE 3

AIRCRAFT

Model

T740

Aircraft weight

Approx. 3,995 g (includes gimbal camera, two batteries, lens, PROSSD and propellers)

Max takeoff weight

Approx. 4,310 g

Hovering accuracy range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

RTK Positioning accuracy (RTK Fix)

1 cm + 1 PPM (horizontal)
1.5 cm + 1 PPM (vertical)

Max angular velocity

Pitch: 200°/s
Roll: 200°/s
Yaw: 150°/s

Max pitch angle

N Mode: 35°
S Mode: 40°
A Mode: 35°
T Mode: 20°
Emergency Brake: 55°

Max ascent speed

8 m/s

Max descent speed

Vertical: 8 m/s

Tilt: 10 m/s

Max horizontal speed

94 kph

Max service ceiling above sea level

Standard Propellers: 3800 m

High-Altitude Propellers: 7000 m

Max wind resistance

Takeoff/land: 12 m/s

In-flight: 14 m/s

Max hovering time

Approx. 25 minutes

Max flight time

Approx. 28 minutes (landing gear lowered)

Approx. 26 minutes (landing gear raised)

Motor model

DJI 3511s

Global navigation satellite system

GPS + Galileo + BeiDou

Propeller model

Standard Propellers: DJI 1671
High-Altitude Propellers: DJI 1676

Operating temperature

-20° to 40° C (-4° to 104° F)

Diagonal distance

Landing Gear Raised: 695 mm
Landing Gear Lowered: 685 mm

Travel mode dimensions

Height: 176 mm
Width: 709.8 mm
Length: 500.5 mm

Class

C3 (EU)

GIMBAL CAMERA

Sensor

35mm full-frame CMOS

Max resolution

Photo: 8192×5456
Video: 8192×4320

Supported lenses

DL 18 mm F2.8 ASPH Lens
DL 24 mm F2.8 LS ASPH Lens
DL 35 mm F2.8 LS ASPH Lens
DL 50 mm F2.8 LS ASPH Lens
DL 75 mm F1.8 Lens

Photo format

JPG, DNG

Video format

MOV, CinemaDNG

Operation mode

Capture, Record, Playback

Exposure mode

P, A, S, M

Shutter type

Electronic shutter

Shutter speed

8-1/8000 s

White balance

AWB

MWB (2000K-10000K)

ISO range

ISO: 100-25600

Video
EI: 200-6400

Anti-flicker

Capture Mode: Auto, 50 Hz, 60 Hz, OFF

Angular vibration range

Hovering: ±0.002°
Flying: ±0.004°

Installation method

Quick release

Mechanical range

Tilt:
-128° to +110° (landing gear lowered)
-148° to +90° (landing gear raised)
Roll: -90° to +230°
Pan: ±330°

Controllable range

Tilt (landing gear lowered):
Before gimbal tilt limit extension: -90° to +30°
After gimbal tilt limit extension: -115° to +100°
Tilt (landing gear raised):
Before gimbal tilt limit extension: -90° to +30°
After gimbal tilt limit extension: -140° to +75°
Roll: ±20°
Pan: ±300°

Max control speed

With DJI RC Plus:

Tilt: 120°/s

Roll: 180°/s

Pan: 270°/s


With DJI Master Wheels:

Tilt: 432°/s

Roll: 432°/s

Pan: 432°/s

Weight

Approx. 516 g (without lens)

VIDEO TRANSMISSION

Video transmission system

O3 Pro

Live view quality

FPV Camera: Up to 1080p/60fps
Gimbal Camera: Up to 1080p/60fps, 4K/30fps

Max live video bitrate

50 Mbps

Max transmission distance

Single Control Mode:

FPV Camera: approx. 15 km (FCC), 8 km (CE/SRRC/MIC)

Gimbal Camera (1080p/60fps live feeds): approx. 13 km (FCC), 7 km (CE/SRRC/MIC)

Gimbal Camera (4K/30fps live feeds): approx. 5 km (FCC), 3 km (CE/SRRC/MIC)


Dual-Control Mode:

FPV Camera: approx. 12 km (FCC), 6.4 km (CE/SRRC/MIC)

Gimbal Camera (1080p/60fps live feeds): approx. 11.2 km (FCC), 5.6 km (CE/SRRC/MIC)

Gimbal Camera (4K/30fps live feeds): approx. 4 km (FCC), 2.4 km (CE/SRRC/MIC)

Lowest latency

FPV Camera: 90 ms

Gimbal Camera: 90 ms

Operating frequency

2.4000-2.4835 GHz

5.150-5.250 GHz (CE: 5.170-5.250 GHz)

5.725-5.850 GHz

Transmitter power (EIRP)

2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

BATTERY

Model

TB51 Intelligent Battery

Capacity

4280 mAh

Nominal voltage

23.1 V

Type

Li-ion

Chemical system

LiCoO2

Energy

98.8 Wh

Weight

Approx. 470 g

Operating temperature

-20° to 40° C (-4° to 104° F)

Charging temperature

-20° to 40° C (-4° to 104° F)

Max charging power

205.5 W

Charge via Aircraft

Not supported

BATTERY CHARGING HUB

Input

100-240 V AC, max 8 A

Output

26.4 V, 7.8 A

Total rated output

476 W, including 65W PD fast charging of USB-C port

Charging time

Fast Mode: Approx. 35 minutes to 90%

Standard Mode: Approx. 55 minutes to 100%

Silent Mode: Approx. 80 minutes to 100%

Charging temperature

-20° to 40° C (-4° to 104° F)

Weight

Approx. 1,680 g

MEMORY CARD

Memory card type

DJI PROSSD 1TB

SENSING

Forward

Measurement Range: 1.5-48 m
Effective Sensing Speed: ≤15 m/s
FOV:
Horizontal 90°, Vertical 103° (landing gear raised)
Horizontal 72°, Vertical 103° (landing gear lowered)

Backward

Measurement Range: 1.5-48 m
Effective Sensing Speed: ≤15 m/s
FOV: Horizontal 90°, Vertical 103°

Lateral

Measurement Range: 1.5-42 m
Effective Sensing Speed: ≤15 m/s
FOV: Horizontal 90°, Vertical 85°

Upward

Measurement Range: 0.2-13 m
Effective Sensing Speed: ≤6 m/s
FOV: Front and Back 100°, Left and Right 90°

Downward

Measurement Range: 0.3-18 m
Effective Sensing Speed: ≤6 m/s
FOV: Front and Back 130°, Left and Right 160°

Operating environment

Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15)

Downward: surfaces with discernible patterns and diffuse reflectivity >20% (e.g., walls, trees, people); adequate lighting (lux >15)

ToF Infrared Sensor

Measurement Range

0-10 m

REMOTE CONTROLLER

Model

RM700B

Operating time

Built-in Batteries: approx. 3.3 hours
Built-in Batteries Plus External Battery: approx. 6 hours

Operating frequency

2.4000-2.4835 GHz

5.725 GHz-5.850 GHz

Video output port

HDMI

Power supply

Built-in batteries or external battery

Coordinated operation

Supports dual controls and coordination between multiple operators

Power consumption

12.5 W

Operating temperature

-20° to 50 °C (-4° to 122° F)

Storage temperature

-30° to 45° C (-22° to 113° F) (within one month)
-30° to 35° C (-22° to 95° F) (one to three months)
-30° to 30° C (-22° to 86° F) (three months to one year)

Battery

Built-in Battery: 3250mAh-7.2V (a set)
External Battery: WB37 Intelligent Battery

Wi-Fi protocol

Wi-Fi 6

Wi-Fi operating frequency

2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

Wi-Fi transmitter power (EIRP)

2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth protocol

Bluetooth 5.1

Bluetooth operating frequency

2.4000-2.4835 GHz

Bluetooth transmitter power (EIRP)

< 10 dBm

APP

App

DJI Pilot 2

FPV CAMERA

FOV

161°

Resolution

1920×1080@60fps

​
