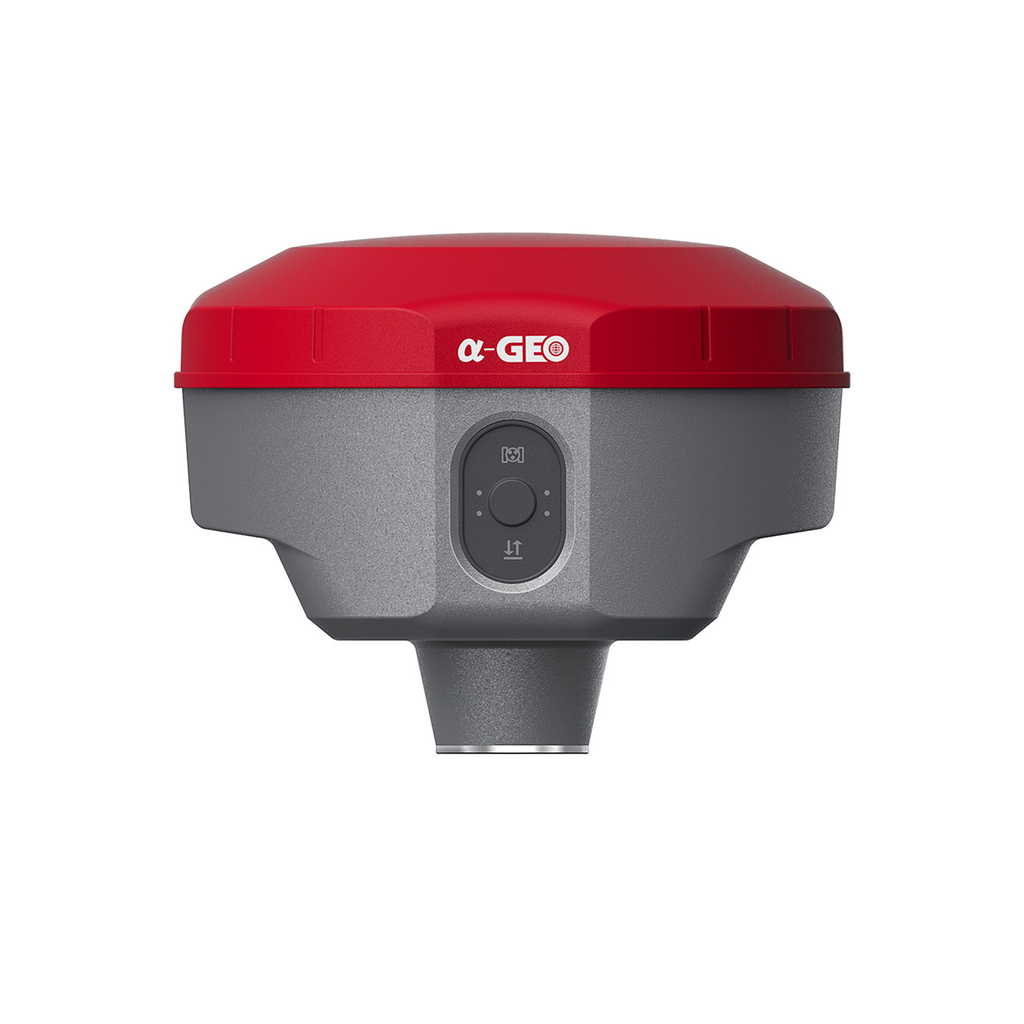

This receiver is equipped with all modern required connectivity modules: Bluetooth, Internal radio, WIFI & 4G modem.7000mAh Built-in battery, IMU tilt technology and WebUl are other latest technologies used in MATRIX II receiver.
MATRIX II |
SPECIFICATION
Satellite signals tracked simultaneously | GPS: L1C/A, L1C, L2P(Y), L2C, L5 |
Channels | 1408 tracking Channels |
Cold start | <60 s |
Hot start | <15 s |
Positioning output rate | 1Hz - 20Hz |
Signal Reacquisition | <1 s |
RTK Initialization time | <10 s |
Initialization Reliability | >99.99% |
Time accuracy | 20 ns |
POSITIONING
Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS |
Static GNSS surveying | Horizontal: 2.5 mm + 0.5 ppm RMS |
REAL TIME KINEMATIC SURVEYING
Single baseline < 30 km | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
Network RTK | Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS |
Laser survey | ± 1 cm + 5 mm/m (tilt height less than 30°) |
PHYSICAL
Material | Magnesium alloy |
Dimensions | 120mm*72mm (without bottom connector 20mm) |
Weight | 0.76kg |
Operating temperature | -40°C to +75°C |
Storage temperature | -55°C to +85°C |
Protection IP | IP67 dust proof, protected from 30min immersion to depth of 1m |
Shock | Survive a 2m pole drop onto concrete |
Vibration | MIL-STD-810G |
Humidity | 100%, condensing |
ELECTRYCAL
Power | 9~24 V DC external power input on 5 pin LEMO port |
Support USB Type-C fast charging | |
Internal 7000mAh-7.4V lithium-ion battery | |
Battery Life | Rover Mode: 12 hours |
I/O INTERFACE
LEMO port (5pin) | Supports power input, serial port control, and external radio communication |
USB Type-C port | Data download / Charging |
Sim card slot | Supports Nano-SIM |
Antenna port | UHF antenna interface |
RADIO MODEM
Transmit power | 1/1.5w switchable |
Frequency band | 410MHz-470MHz; supports to set the frequency |
Protocols | TrimTalk450s, SOUTH, Satel,PCC-EOT |
COMMUNICATIONS
CELLULAR | Integrated full frequency multi band 4G modem, supports WCDMA/CDMA2000/TDD-LTE/FDD-LTE |
Wi-Fi | 802.11 b/g standard, access point & client mode, supports access to hotspot for correction transmission |
Bluetooth | Bluetooth 5.2 Classical/BLE Proprietary double-mode |
Bluetooth | V5.0 |
Data format | RTCM2X, RTCM3x, CMR & CMR+, SCMRX RINEX, NMEA outputs |
Storage | 64GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval |
CAMERA
AR | 5M high-definition camera with large viewing angle and support for live scene lofting |
Laser assisted | 5M high-definition camera, large viewing angle, auxiliary laser measurement and aiming |
