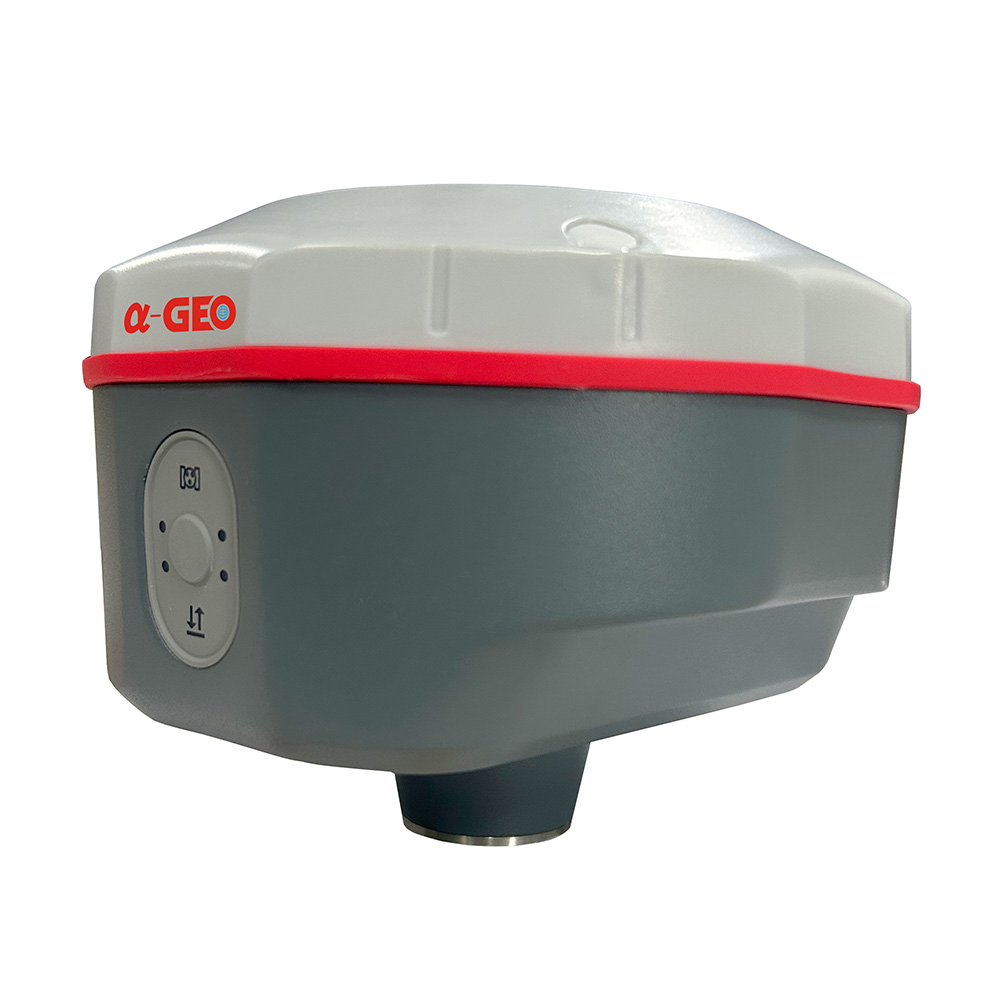

MATRIX II LITE |
SPECIFICATION
Satellite signals tracked simultaneously | GPS: L1C/A, L1C, L2P(Y), L2C, L5 |
Channels | 1408 tracking channels |
Cold start | <60 s |
Hot start | <15 s |
Positioning output rate | 1Hz-20Hz |
Signal Reacquisition | <1 s |
RTK Initialization time | <5 s |
Initialization Reliability | >99.99% |
Time accuracy | 20 ns |
POSITIONING
Static GNSS surveying | Horizontal: 2.5 mm + 0.5 ppm RMS |
RTK surveying | Horizontal: ±(8mm + 1.0ppm) |
PHYSICAL
Material | Magnesium alloy |
Dimensions | 120mm*72mm (without bottom connector 20mm) |
Weight | 0.76 kg |
Operating temperature | -40°C to +75°C |
Storage temperature | -55°C to +85°C |
Protection IP | IP67 dust proof, protected from 30min immersion to depth of 1m |
Schock | Survive a 2m pole drop onto concrete |
Vibration | MIL-STD-810G |
Humidity | 100%, condensing |
ELECTRYCAL
Power | 9~24 V DC external power input on 5 pin LEMO port |
Support USB Type-C fast charging | |
Internal 7000mAh-7.4V lithium-ion battery | |
Battery life | Network Mode: >24h |
I/O INTERFACE
LEMO port (5pin) | |
USB Type-C port | Data download / charging |
RADIO MODEM
Internal radio | TX/RX internal module |
Internal radio frequency | 410-470 MHZ |
Communication protocol | Alphatalk1 5, Transparent transmission /TT 450S/SOUTH |
Bluetooth
Fully integrated Bluetooth V4.0, range 50m |
DATA FORMAT
Differential data | RTCM2.X, RTCM3.X |
GPS output data format | NMEA 0183s RTK, Binary code |
STORAGE
8GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval |
SYSTEM INTEGRATION
OS system | Intelligent LINUX operating system |
Supported controllers | Intelligent LINUX operating system |
Key | one button |
Indicator | Power indicator, data link indicator, satellite indicator, Bluetooth indicator |
