The receiver features multiple connectivity options, including Bluetooth, Wi-Fi, UHF radio and 4G modem, ensuring reliable data flow to the controller. With an internal 10.200 mAh battery, the S990+ can operate for up to 9 hours and can be recharged via a USB Type-C connector. The IMU system supports tilted measurement (TILT) with quick initialization, providing accurate surveys even in challenging conditions. The color touch display and Web UI offer complete control of the receiver, while the 1PPS port ensures precise timing for multiple facilities and systems integration. The S990+ also offers an optional double-frequency UHF radio and 4G modem, making it suitable for use in different countries.

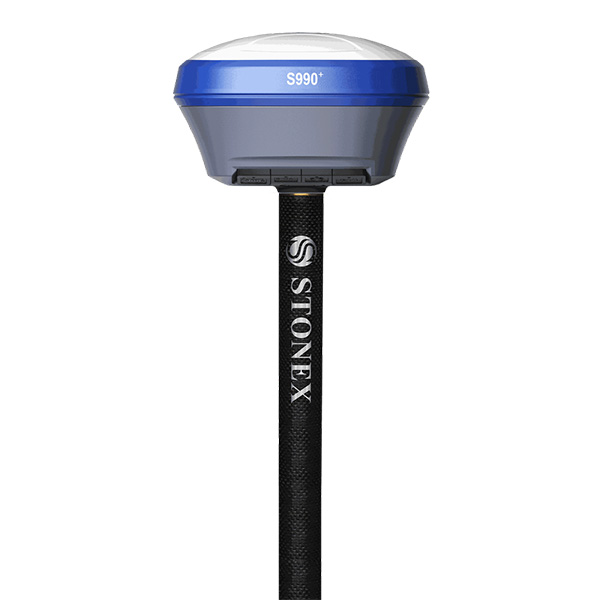

S990+ |
SPECIFICATION
Signal Tracking | PS: L1 C/A, L1C, L2P, L2C, L5 |
PPP | B2b PPP1, HAS1 |
Channels | 1408 |
Position Rate | Up to 20Hz |
Signal Reacquisition | < 1 s |
RTK Signal Initialization2 | Typically < 10 s |
Hot Start | Typically < 15 s |
Initialization Reliability | > 99.9 % |
Internal Memory | 32 GB |
OS | Linux |

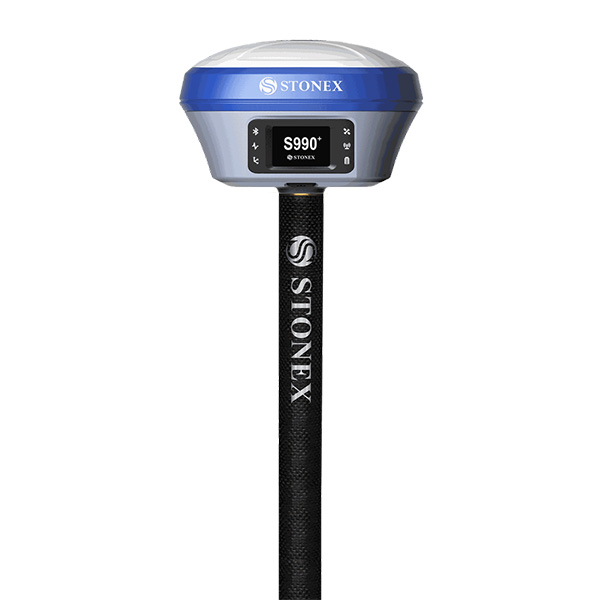

Display | 1.45’’ TFT LCD, 240 x 320 pixels |
Tilt Sensor | IMU and E-bubble |
STATIC SURVEYING
High Precision Static Horizontal | 2.5 mm + 0.1 ppm RMS |
High Precision Static Vertical | 3.5 mm + 0.4 ppm RMS |
Static and Fast Static Horizontal | 3 mm + 0.5 ppm RMS |
Static and Fast Static Vertical | 5 mm + 0.5 ppm RMS |
CODE DIFFERENTIAL POSITIONING
Horizontal | 0.25 m + 1 ppm RMS |
Vertical | 0.50 m + 1 ppm RMS |
SBAS POSITIONING
Accuracy | 0.60 m RMS |
Fixed RTK Horizontal | 5 mm + 0.5 ppm RMS |
Fixed RTK Vertical | 10 mm + 0.5 ppm RMS |
INTEGRATED GNSS ANTENNA
High accuracy multi-constellation antenna, zero phase center, with internal multipath suppression
POWER SUPPLY
Battery | Internal rechargeable 7.2 V – 10200 mAh |
Voltage | 9 to 28 V DC external power input with over-voltage protection (5-pin Lemo) |
Working Time | Up to 12 hours |
Charge Time | Typically 4 hours |
