The EZiSYSTEM cable avoidance equipment makes locating buried cables and pipes easy and efficient. With an EZiCAT i-Series locator there is no need to manually adjust the sensitivity, with the unique Automatic Pinpointing feature users can simply press the trigger and start locating.

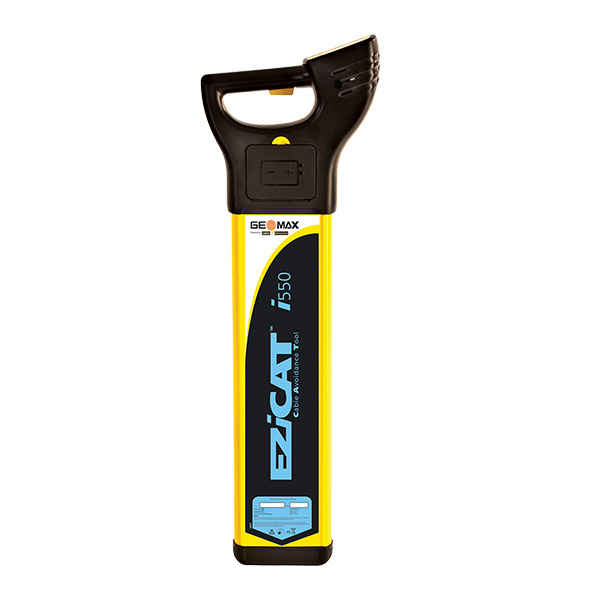

EZiSYSTEM i-Series |
SPECIFICATION
Model | EZiCAT i550 | EZiCAT i500 |
Power | 50Hz model or 60Hz model | 50Hz model or 60Hz model |
Radio | 15kHz to 60kHz | 15kHz to 60kHz |
Auto | Power, Radio, 33kHz | Power, Radio, 33kHz |
Transmitter mode | 32.768 (33) kHz | 32.768 (33) kHz |
Depth range | Line or Sonde 0.32ft to 9.84 | Line or Sonde 0.32ft to 9.84 |
Depth accuracy | 10% | 10% |
Bluetooth | -- | -- |
GPS | -- | -- |
Memory Capacity | -- | -- |
Battery | 6 x AA Alkaline (IEC LR6) supplied | 6 x AA Alkaline (IEC LR6) supplied |
Battery operating time | 40 h intermittent use (at 68°F) | 40 h intermittent use (at 68°F) |
Dimensions (HxWxD) | 29.9 x 9.84 x 3.3in | 29.9 x 9.84 x 3.3in |
Weight with batteries | 6lbs | 6lbs |
