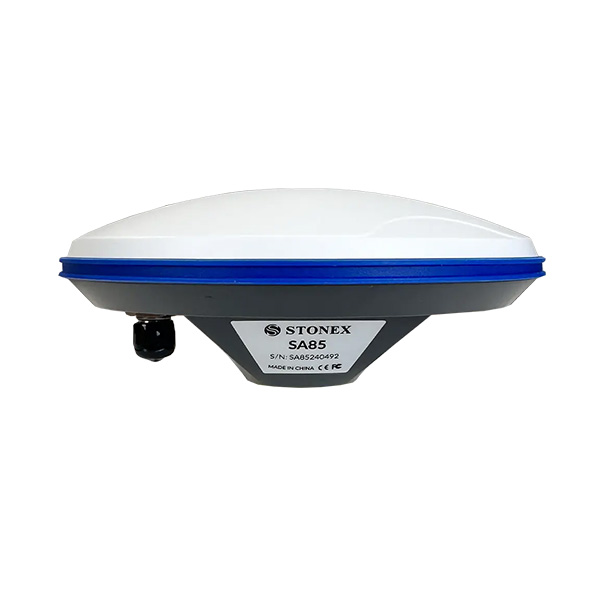

SA85 |
PERFORMANCE
Satellite signals tracked | GPS: L1, L2, L5 GLONASS: L1, L2, L3 BEIDOU: B1, B2, B3 GALILEO: E1, E5a, E5b, E6 QZSS: L1, L2, L5, L6 IRNSS: L5 SBAS: L1, L5 L-BAND |
Type | Geodetic Antenna |
Phase center stability | ± 2 mm |
Nominal impedance | 50 Ω |
Polarization | RHCP |
Axial ratio | ≤ 3 dB |
Peak gain | 5.5 dBi |
LNA gain | 40dB (typical) |
Noise Figure | ≤ 1.8 dB |
Output/Input VSWR | ≤ 2 |
Operation voltage | 3.3 V DC ~ 12 V DC |
Operation current | ≤ 50 mA |
Group delay ripple | ≤ 5 ns |
MECHANICAL
Dimensions | Ø 150 × 61 mm |
Connector | TNC |
Mounting | 5/8" × 11 (British system) |
Weight | 450g |
ENVIRONMENTAL
Operating temperature | −40°C to 85°C (−40°F to 185°F) |
Storage temperature | −55°C to 85°C (−67°F to 185°F) |
Humidity | 95% non-condensing |
Waterproof/Dustproof | IP67 |
CALIBRATION
NGS | Yes |
IGS | No |
