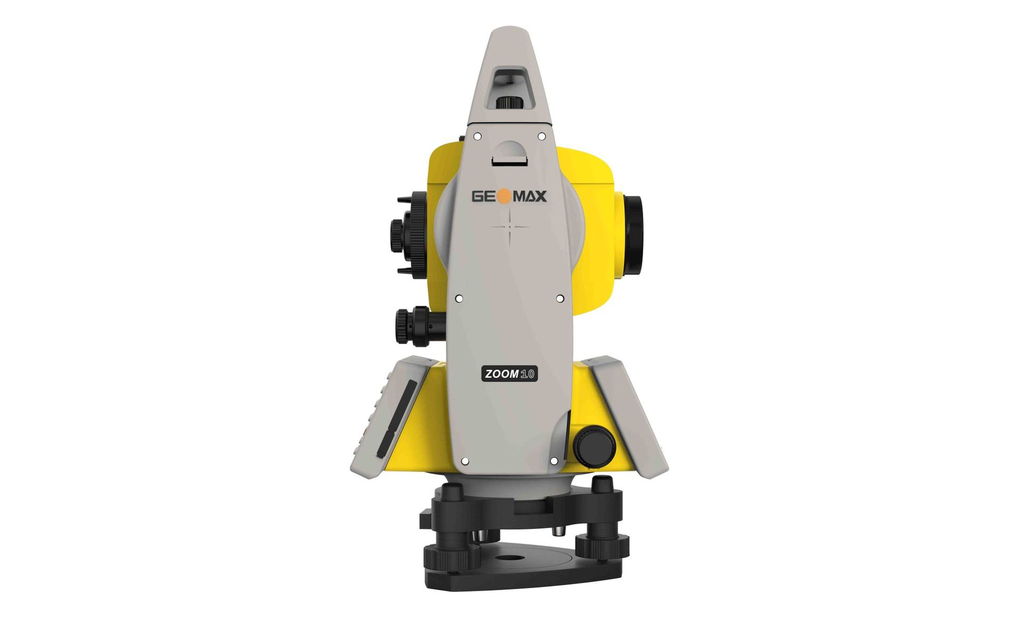

The Zoom40 manual total station, with its high resolution color and touch display, gives you the flexibility to run X-PAD, Field Genius, Carlson SurvCE, or any custom windows CE software. Combined with the capability to measure long distances with high accuracy, you can be sure: Zoom40 “works when you do”
ZOOM40 |
SPECIFICATION
Accuracy | 2'',5'' |
Display resolution | 1'' |
Method | Absolute, continuous, diametrical |
Compensation | Quadruple axis |
TELESCOPE
Type | neXus |
Magnification | 30x |
NavLight™ Range | - |
NavLight™ Accuracy | - |
DISTANCE MEASUREMENTS - PRISM
Range | 3500 m (std. prism) |
Accuracy | 2 mm + 2ppm |
Typ. time (fast/standart) | 2 / 2.4 sec |
DISTANCE MEASUREMENTS - NON-PRISM
Range | 500 m |
Acuracy | 2 mm + 2ppm 2 mm |
Footprint | 12 x 24 mm @ 50 m |
INTERFACE
Keyboard | Two full alphanumeric |
Display | Color & Touch, 3.5” Q-VGA 320 x 240 pixel with LED backlight, 10 lines |
Date recording | Internal memory, 2 GB |
Bluetooth | yes |
Removable memory | USB stick |
Ports | USB, USB mini |
SOFTWARE
Operating system | Open windows CE |
Open for 3rd party party SW | Yes |
Basic package | Fully flexible |
Advanced package | Fully flexible |
PHYSICAL SPECIFICATIONS
Weight | 5.3 kg w/o battery & tribrach |
Operating temperature | -20 °C to 50 °C |
Protection class | IP54 |
POWER SUPPLY
Type/Operating time | Removable, 10 hours |
PLUMMET
Type | Laser point, adjustable brightness |
